Multicore cables, PVC - ungeschirmt

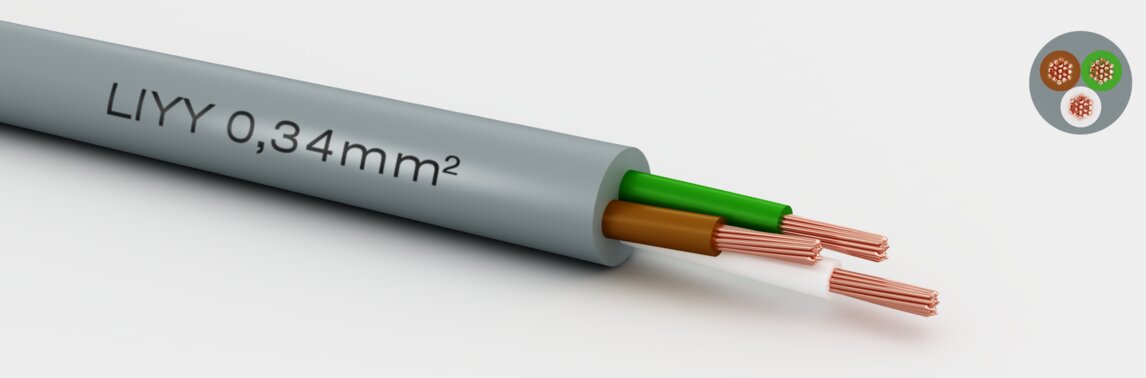

LiYY 0,34mm²
Properties
flame retardant
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Stranding:
7x0,25mm
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
DIN 47100
Outer sheath:
PVC acc. VDE 0207 / EN 50363-3
Jacket Colour:
RAL 7001 silver grey
technical data
Conduct. cross-sect.:
0,34 mm²
Core diameter:
1,55 mm
:
±0,10
Temperature range static:
-40 to 80 °C
Temperature range moved:
-5 to 70 °C
:
20 MOhm x km bei 20°C (min. )
conductor resist.:
57,5 Ohm/km bei 20°C (max.)
static bending radius:
15,0 x outer diameter
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 500 | 1500 |
- flame retardant
- self-extinguishing
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|
| 2 | 4,30 | 6,90 | 22,00 | 601340211 | Datenblatt | |
| 3 | 4,50 | 10,80 | 30,00 | 601340311 | Datenblatt | |
| 4 | 5,00 | 14,40 | 39,00 | 601340411 | Datenblatt | |
| 5 | 5,50 | 18,00 | 54,00 | 601340511 | Datenblatt | |
| 6 | 6,00 | 21,60 | 58,00 | 601340611 | Datenblatt | |
| 7 | 6,20 | 25,20 | 60,00 | 601340711 | Datenblatt | |
| 8 | 6,60 | 28,80 | 63,00 | 601340811 | Datenblatt | |
| 10 | 7,40 | 36,00 | 82,00 | 601341011 | Datenblatt | |
| 12 | 7,80 | 43,20 | 102,00 | 601341211 | Datenblatt | |
| 14 | 8,00 | 45,70 | 108,00 | 601341411 | Datenblatt | |
| 16 | 8,90 | 57,60 | 126,00 | 601341611 | Datenblatt | |
| 20 | 10,00 | 72,20 | 160,00 | 601342011 | Datenblatt | |
| 24 | 11,00 | 86,00 | 189,00 | 601342411 | Datenblatt | |
| 30 | 12,00 | 98,40 | 206,00 | 601343011 | Datenblatt | |
| 32 | 12,40 | 115,00 | 223,00 | 601343211 | Datenblatt | |
| 36 | 12,80 | 129,00 | 244,00 | 601343611 | Datenblatt | |
| 40 | 13,40 | 137,00 | 266,00 | 601344011 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
