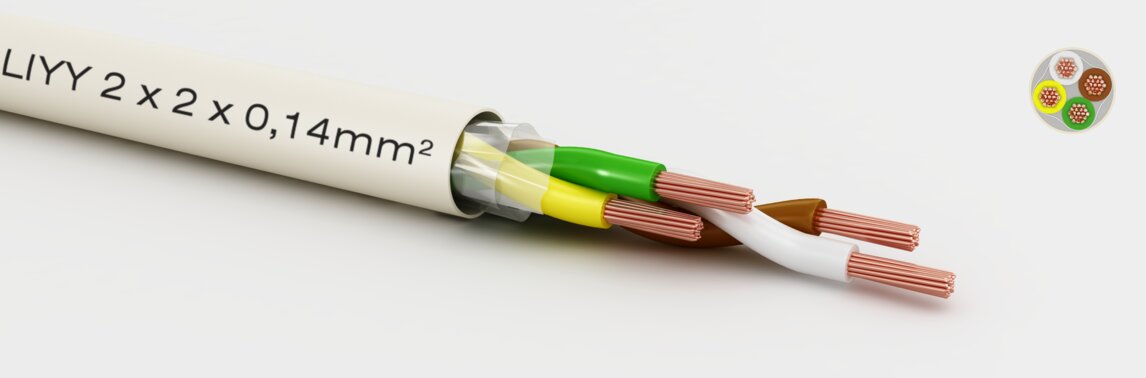

LiYY 0,14mm² twisted pair
Properties
flame retardant
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Stranding:
18x0,10mm
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
DIN 47100
Outer sheath:
PVC acc. to VDE 0207 / EN 50363-4
Jacket Colour:
RAL 7032 pebble grey
technical data
Conduct. cross-sect.:
0,14 mm²
Core diameter:
1,05 mm
:
0,15
Temperature range static:
-30 to 80 °C
Temperature range moved:
-5 to 70 °C
:
20 MOhm x km bei 20°C (min. )
conductor resist.:
148,0 Ohm/km bei 20°C (max.)
static bending radius:
15,0 x outer diameter
Wall thickness:
0,60 mm
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 350 | 1200 |
- flame retardant
- self-extinguishing
| No. of Pairs | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|
| 2 | 5,00 | 6,00 | 24,00 | 801140221 | Datenblatt | |
| 3 | 5,40 | 9,00 | 31,00 | 801140321 | Datenblatt | |
| 4 | 5,90 | 12,00 | 38,60 | 801140421 | Datenblatt | |
| 5 | 6,00 | 14,50 | 40,00 | 801140521 | Datenblatt | |
| 6 | 6,20 | 17,50 | 50,00 | 801140621 | Datenblatt | |
| 8 | 7,90 | 23,00 | 64,00 | 801140821 | Datenblatt | |
| 10 | 8,80 | 28,00 | 78,00 | 801141021 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
