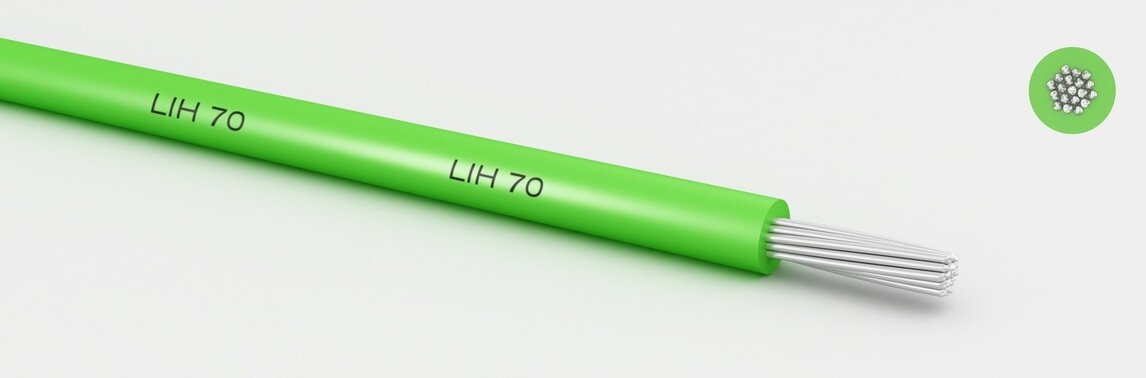

LiH/70

Properties

Construction technical data Properties

Construction

Conductor:

tin plated copper acc. to EN13602

Core Isulation:

PE 2Y

technical data

0,10

Temperature range static:

-40 to 70 °C

Temperature range moved:

-40 to 70 °C

100 MOhm x km bei 20°C (min. )

halogen-free
low smoke density EN 61034
no corrosive gases: IEC60754-2; EN50267-2

Cross sectional area m²	Stranding	Core ∅ (mm)			CU-Index	total weight kg/km	Article number	datasheet
0,14	18x0,10mm	1,10	1200	450	1,40	1,75	129014	Datenblatt
0,25	14x0,15mm	1,30	2500	450	2,40	3,00	129025	Datenblatt
0,34	19x0,15mm	1,60	2500	500	3,50	4,10	129034	Datenblatt
0,50	16x0,20mm	1,80	2500	900	4,80	6,00	129050	Datenblatt
0,75	24x0,20mm	2,00	2500	900	7,20	9,00	129075	Datenblatt
1,00	32x0,20mm	2,10	2500	900	9,60	12,10	129100	Datenblatt
1,50	30x0,25mm	2,60	2500	900	14,40	18,00	129150	Datenblatt
2,50	50x0,25mm	3,60	2500	900	24,00	30,00	129250	Datenblatt
