Single wires, halogenfrei
Single wires, cores and wires with enhanced temperatur stability

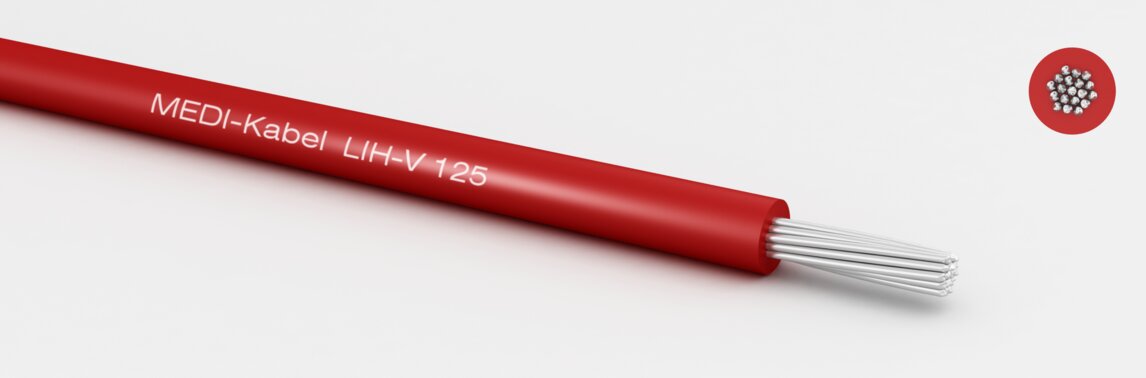

LiH/125 TPE-V higher nominal voltage
Properties
halogen-free
good chemical resistance
good ozone resistance
good UV resistance
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
TPE-V - thermoplastic compound
technical data
Temperature range static:
-40 to 125 °C
Temperature range moved:
-40 to 125 °C
static bending radius:
10,0 x outer diameter
Bending radius dynamic:
12,0 x outer diameter
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| LIH 125 S01 | 600 | 1000 | 3000 |
- halogen-free
- good chemical resistance
- good ozone resistance
- good UV resistance
Select visible columns
informationCross sectional area m²StrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| Cross sectional area m² | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry | ||
|---|---|---|---|---|---|---|---|---|---|
| 0,14 | 18x0,10mm | 1,25 | 2000 | 450 | 1,40 | 1,90 | 155014S01 | Datenblatt | |
| 0,25 | 14x0,15mm | 1,45 | 2000 | 450 | 2,40 | 4,00 | 155025S01 | Datenblatt | |
| 0,50 | 16x0,20mm | 1,90 | 3000 | 600 | 4,80 | 6,50 | 155050S01 | Datenblatt | |
| 1,00 | 32x0,20mm | 2,60 | 3000 | 600 | 9,60 | 15,20 | 155100S01 | Datenblatt | |
| 2,50 | 50x0,25mm | 3,50 | 3000 | 600 | 24,00 | 31,60 | 155250S01 | Datenblatt | |
| 4,00 | 56x0,30mm | 4,15 | 3000 | 600 | 38,40 | 46,00 | 155400S01 | Datenblatt | |
| 6,00 | 84x0,30mm | 4,95 | 3000 | 600 | 58,00 | 65,00 | 155600S01 | Datenblatt | |
| 10,00 | EN 60228; cl. 5 | 6,15 | 3000 | 600 | 96,00 | 110,00 | 155101S01 | Datenblatt | |
| 16,00 | EN 60228; cl. 5 | 7,35 | 3000 | 600 | 154,00 | 165,00 | 155161S01 | Datenblatt | |
| 25,00 | EN 60228; cl. 5 | 8,90 | 3000 | 600 | 240,00 | 250,00 | 155251S01 | Datenblatt | |
| 35,00 | EN 60228; cl. 5 | 10,30 | 3000 | 600 | 336,00 | 345,00 | 155351S01 | Datenblatt | |
| 50,00 | EN 60228; cl. 5 | 12,10 | 3000 | 600 | 480,00 | 500,00 | 155501S01 | Datenblatt | |
| 70,00 | EN 60228; cl. 5 | 16,00 | 3000 | 600 | 672,00 | 760,00 | 155701S01 | Datenblatt | |
| 95,00 | EN 60228; cl. 5 | 19,20 | 3000 | 600 | 912,00 | 985,00 | 155951S01 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
UK Conformity Assessment
