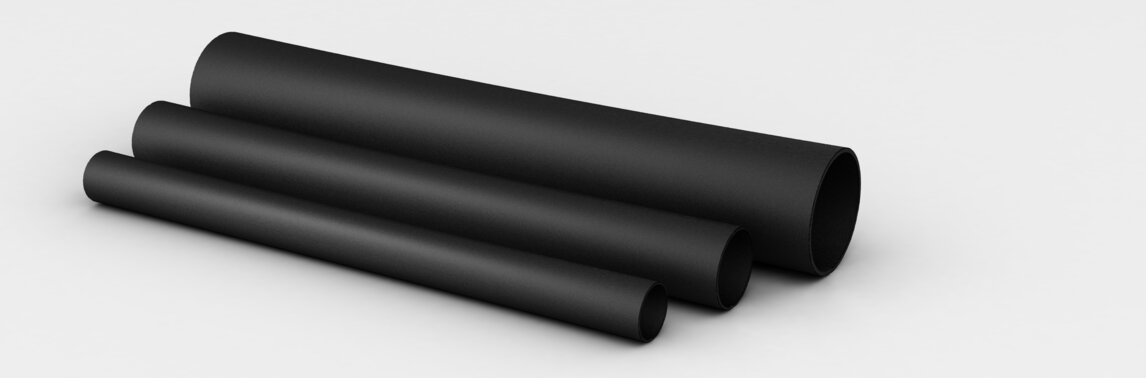

Tubes, insulating sleeves
The "abrasion resistant"
Properties
halogen-free
Construction
materials:
PUR-Polyurethan
Jacket Colour:
RAL 9005 jet black
technical data
Temperature range moved:
-40 to 80 °C
:
10 MOhm x km bei 20°C (min. )
- halogen-free
- acc. DIN 40621
- Flameability class V; <100mm/min
| nominal size (mm) | Packaging unit | Article number | datasheet | inquiry | ||
|---|---|---|---|---|---|---|
| 2,50 | 0,50 | 1000 | I02025508 | Datenblatt | ||
| 3,00 | 0,50 | 1000 | I02030508 | Datenblatt | ||
| 4,00 | 0,60 | 1000 | I02040608 | Datenblatt | ||
| 4,50 | 0,70 | 1000 | I02045708 | Datenblatt | ||
| 5,00 | 0,70 | 900 | I02050708 | Datenblatt | ||
| 6,00 | 0,70 | 650 | I02060708 | Datenblatt | ||
| 6,50 | 0,70 | 600 | I02065708 | Datenblatt | ||
| 7,00 | 0,70 | 500 | I02070708 | Datenblatt | ||
| 8,00 | 0,80 | 400 | I02080808 | Datenblatt | ||
| 9,00 | 0,80 | 300 | I02090808 | Datenblatt | ||
| 10,00 | 0,80 | 250 | I02100808 | Datenblatt | ||
| 12,00 | 0,90 | 200 | I02120908 | Datenblatt | ||
| 13,00 | 0,90 | 150 | I02130908 | Datenblatt | ||
| 14,00 | 1,00 | 150 | I02141008 | Datenblatt | ||
| 16,00 | 1,00 | 110 | I02161008 | Datenblatt | ||
| 18,00 | 1,00 | 80 | I02181008 | Datenblatt | ||
| 20,00 | 1,00 | 75 | I02201008 | Datenblatt | ||
| 22,00 | 1,00 | 60 | I02221008 | Datenblatt | ||
| 23,00 | 1,00 | 60 | I02231008 | Datenblatt |
Certificates
RoHS-konform
REACH konform
