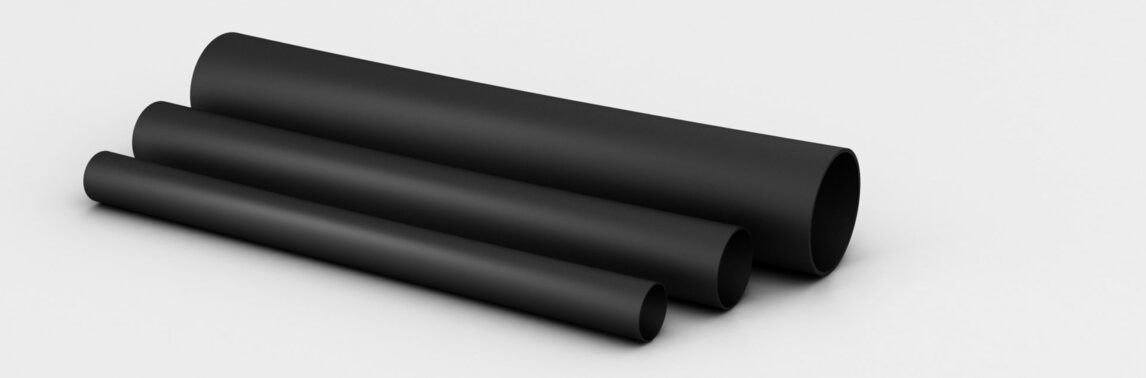

UL/cUL shrinkable tubes

Properties

Construction technical data Properties

Construction

materials:

polyolefine

Jacket Colour:

RAL 9005 jet black

technical data

Temperature range moved:

-30 to 125 °C

Shrink Temperature:

90 °C

2:1

Operating Voltage UL

Norm	U (Vac)	Temperature °C	Test Voltage
	600

halogen-free

Select visible columns information

Inside diameter expanded Ø (mm)	Inside diameter contracted Ø mm		Packaging unit	Article number	datasheet
1,2	0,6	0,36	150	SM1R01208	Datenblatt
1,5	0,8	0,28	200	SM1R01508
2,4	1,2	0,42	150	SM1R02408	Datenblatt
3,2	1,6	0,46	150	SM1R03208	Datenblatt
4,8	2,4	0,50	75	SM1R04808	Datenblatt
6,4	3,2	0,50	75	SM1R06408	Datenblatt
9,5	4,8	0,60	75	SM1R09508	Datenblatt
9,5	4,8	0,60	225	SM1V09508	Datenblatt
12,5	6,4	0,65	50	SM1R12708	Datenblatt
25,4	12,7	0,90	30	SM1R25408	Datenblatt

Certificates
