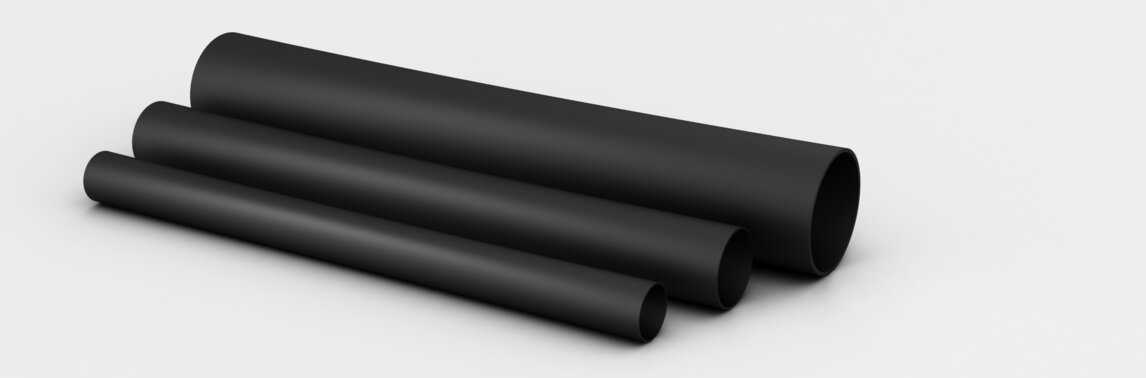

The "approbate" unprinted

Properties

Construction technical data Properties

Construction

materials:

polyolefine

Jacket Colour:

RAL 9005 jet black

technical data

Temperature range moved:

-55 to 135 °C

Shrink Temperature:

90 °C

2:1

Operating Voltage UL

Norm	U (Vac)	Temperature °C	Test Voltage
	600

self-extinguishing

Select visible columns information

Inside diameter expanded Ø (mm)	Inside diameter contracted Ø mm		Packaging unit	Article number	datasheet
1,2	0,6	0,40	300	S01001208	Datenblatt
1,6	0,8	0,43	300	S01001608	Datenblatt
2,4	1,2	0,51	150	S01002408	Datenblatt
3,2	1,6	0,51	150	S01003208	Datenblatt
4,8	2,4	0,51	60	S01004808	Datenblatt
6,4	3,2	0,64	60	S01006408	Datenblatt
9,5	4,8	0,64	60	S01009508	Datenblatt
12,7	6,4	0,64	60	S01012708	Datenblatt
19,1	9,5	0,76	60	S01019108	Datenblatt
25,4	12,7	0,89	60	S01025408	Datenblatt
38,1	19,1	1,02	60	S01038108	Datenblatt
50,8	25,4	1,14	60	S01050808	Datenblatt
