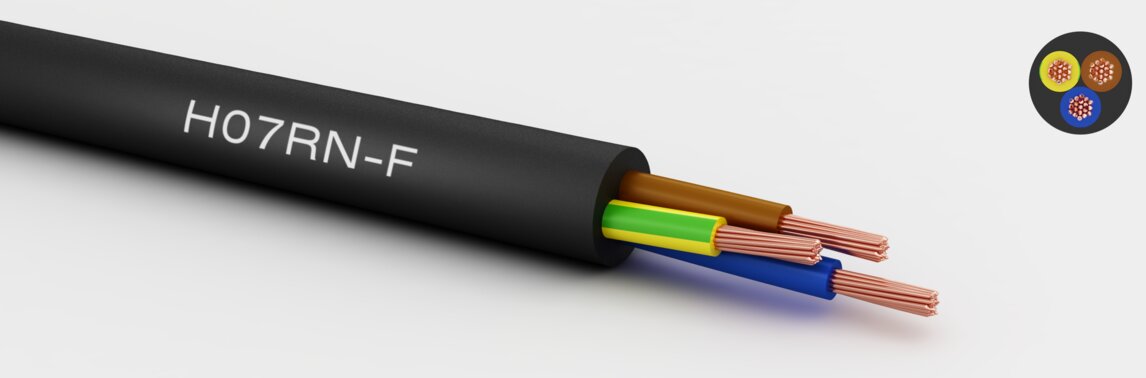

Multicore cables, harmonisierte Leitungen
Multicore cables, Neoprene
H07RN-F acc. EN 50525-2-21 (VDE 0285)
Construction
Conductor:
bare copper acc. to EN 13602
Stranding:
EN 60228; cl. 5
Core Isulation:
EI4 / Ethylen-Propylen-Elastomercompound
Color code cores:
VDE0293 HD308 with ye/gn (JB)
Outer sheath:
CR 5G EM5 acc.to EN 50363
Jacket Colour:
RAL 9005 jet black
technical data
Conduct. cross-sect.:
1,00 mm²
Temperature range static:
-25 to 60 °C
:
10 MOhm x km bei 20°C (min. )
static bending radius:
15,0 x outer diameter
Wall thickness:
1,30 mm
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 450 | 750 | 2500 |
- flame retardand: IEC/EN 60332-1-2
- oil resistant acc to EN60811 part 404
Select visible columns
informationNo.of coresCross sectional area m²Core ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|---|
| 3 | 1,00 | 2,94 | 9,50 | 29,00 | 85,00 | 620100332 | Datenblatt | |
| 4 | 1,00 | 3,05 | 10,55 | 38,00 | 98,00 | 620100432 | Datenblatt | |
| 2 | 1,50 | 3,00 | 9,75 | 29,00 | 98,00 | 620150232 | Datenblatt | |
| 3 | 1,50 | 3,05 | 10,55 | 43,20 | 120,00 | 620150332 | Datenblatt | |
| 4 | 1,50 | 3,05 | 11,65 | 58,00 | 150,00 | 620150432 | Datenblatt | |
| 5 | 1,50 | 3,05 | 12,80 | 72,00 | 233,00 | 620150532 | Datenblatt | |
| 2 | 2,50 | 3,65 | 11,65 | 48,00 | 145,00 | 620250232 | Datenblatt | |
| 3 | 2,50 | 3,65 | 12,45 | 72,00 | 170,00 | 620250332 | Datenblatt | |
| 4 | 2,50 | 3,90 | 13,80 | 96,00 | 220,00 | 620250432 | Datenblatt | |
| 5 | 2,50 | 3,65 | 15,15 | 120,00 | 270,00 | 620250532 | Datenblatt | |
| 3 | 4,00 | 4,30 | 14,45 | 115,00 | 320,00 | 620400332 | Datenblatt | |
| 4 | 4,00 | 4,30 | 15,95 | 154,00 | 395,00 | 620400432 | Datenblatt | |
| 5 | 4,00 | 4,30 | 17,75 | 192,00 | 485,00 | 620400532 | Datenblatt | |
| 3 | 6,00 | 4,80 | 16,05 | 173,00 | 495,00 | 620600332 | Datenblatt | |
| 4 | 6,00 | 4,80 | 17,85 | 230,00 | 605,00 | 620600432 | Datenblatt | |
| 5 | 6,00 | 4,80 | 19,85 | 288,00 | 760,00 | 620600532 | Datenblatt | |
| 3 | 10,00 | 6,56 | 21,65 | 288,00 | 880,00 | 62010X332 | Datenblatt | |
| 4 | 10,00 | 6,56 | 23,70 | 384,00 | 1065,00 | 62010X432 | Datenblatt | |
| 5 | 10,00 | 6,56 | 26,00 | 480,00 | 1300,00 | 62010X532 | Datenblatt |
