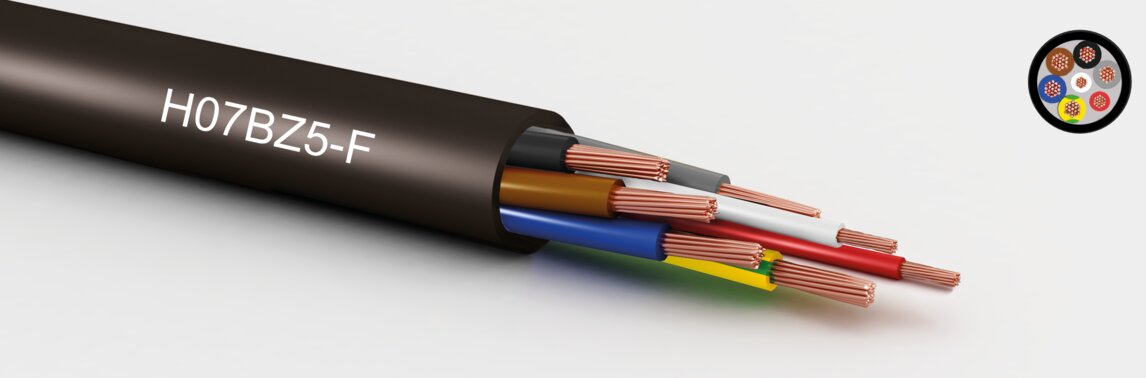

H07BZ5-F Charging cable for electric vehicles
Properties
flame retardant
water resistant
good weather resistance
good UV resistance
increased abrasion resistance
helix capable
extensively resistant to oil
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
ethylen-propylen-rubber 3G
Outer sheath:
PUR 11Y
Approval:
EN 50620
Jacket Colour:
optional
technical data
Temperature range static:
-40 to 90 °C
Temperature range moved:
-40 to 90 °C
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 450 | 750 |
- flame retardant
- water resistant
- good weather resistance
- good UV resistance
- increased abrasion resistance
- helix capable
- extensively resistant to oil
Select visible columns
informationNo.of coresCross sectional area m²CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|
| 5 | 999,51 | 9,20 | 52,80 | 115,00 | KA1100050001 | Datenblatt | |
| 5 | 999,51 | 10,10 | 81,60 | 150,00 | KA1100050002 | Datenblatt | |
| 5 | 999,51 | 12,50 | 183,60 | 270,00 | KA1100050003 | Datenblatt | |
| 6 | 999,51 | 12,80 | 124,80 | 235,00 | KA1100060001A | ||
| 6 | 999,51 | 16,50 | 294,80 | 460,00 | KA1100060002A | ||
| 7 | 999,51 | 12,80 | 129,60 | 255,00 | KA1100070001A | ||
| 7 | 999,51 | 16,00 | 299,60 | 490,00 | KA1100070002A |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
nach Harmonisierungsdokument
