Multicore cables, PVC - ungeschirmt
Multicore cables, harmonisierte Leitungen

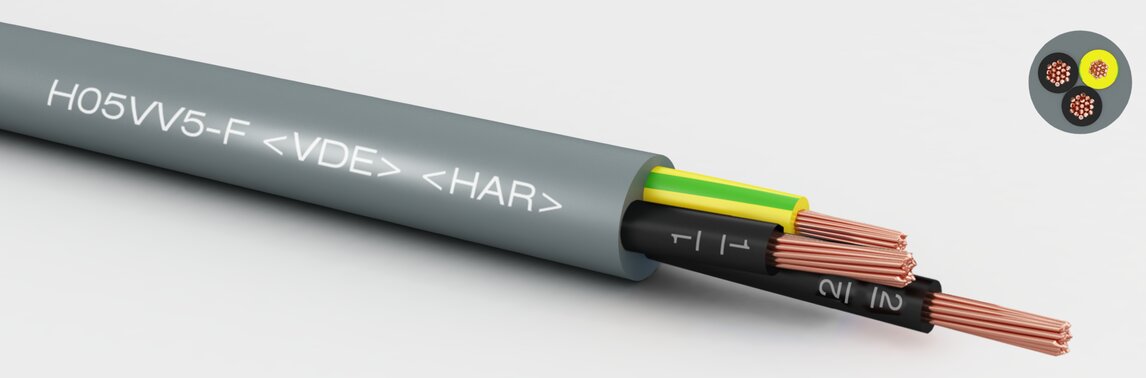

H05VV5-F acc. EN 50525-2-51
Properties
self-extinguishing
extensively resistant to oil
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
bk cores with numbers and ye/gn (JZ)
Outer sheath:
PVC oil-resistant
Jacket Colour:
RAL 7001 silver grey
technical data
Temperature range static:
-30 to 70 °C
Temperature range moved:
-5 to 70 °C
:
10 MOhm x km bei 20°C (min. )
static bending radius:
4,0 x outer diameter
Bending radius dynamic:
12,5 x outer diameter
Wall thickness:
0,80 mm
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 300 | 500 | 3000 |
- self-extinguishing
- flame retardand: IEC/EN 60332-1-2
- extensively resistant to oil
Select visible columns
informationNo.of coresCross sectional area m²Core ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|---|
| 3 | 0,75 | 2,40 | 6,80 | 21,60 | 68,00 | 612750314 | Datenblatt | |
| 4 | 0,75 | 2,40 | 7,45 | 29,00 | 82,00 | 612750414 | Datenblatt | |
| 5 | 0,75 | 2,40 | 8,35 | 36,00 | 107,00 | 612750514 | Datenblatt | |
| 7 | 0,75 | 2,40 | 10,15 | 51,00 | 145,00 | 612750714 | Datenblatt | |
| 12 | 0,75 | 2,40 | 12,35 | 86,40 | 231,00 | 612751214 | Datenblatt | |
| 18 | 0,75 | 2,40 | 14,80 | 130,00 | 313,00 | 612751814 | Datenblatt | |
| 25 | 0,75 | 2,40 | 17,00 | 180,00 | 461,00 | 612752514 | Datenblatt | |
| 3 | 1,00 | 2,55 | 7,15 | 29,00 | 78,00 | 612100314 | Datenblatt | |
| 4 | 1,00 | 2,55 | 7,80 | 39,00 | 104,00 | 612100414 | Datenblatt | |
| 5 | 1,00 | 2,55 | 8,80 | 48,00 | 123,00 | 612100514 | Datenblatt | |
| 7 | 1,00 | 2,55 | 10,65 | 67,20 | 183,00 | 612100714 | Datenblatt | |
| 12 | 1,00 | 2,55 | 13,20 | 115,20 | 269,00 | 612101214 | Datenblatt | |
| 18 | 1,00 | 2,55 | 15,60 | 173,00 | 400,00 | 612101814 | Datenblatt | |
| 3 | 1,50 | 3,00 | 8,40 | 44,00 | 97,00 | 612150314 | Datenblatt | |
| 4 | 1,50 | 3,00 | 9,20 | 58,00 | 128,00 | 612150414 | Datenblatt | |
| 5 | 1,50 | 3,00 | 10,25 | 72,00 | 149,00 | 612150514 | Datenblatt | |
| 7 | 1,50 | 3,00 | 12,70 | 101,00 | 216,00 | 612150714 | Datenblatt | |
| 12 | 1,50 | 3,00 | 15,40 | 173,00 | 324,00 | 612151214 | Datenblatt | |
| 3 | 2,50 | 3,70 | 10,30 | 72,00 | 154,00 | 612250314 | Datenblatt | |
| 4 | 2,50 | 3,70 | 11,30 | 96,00 | 212,00 | 612250414 | Datenblatt | |
| 5 | 2,50 | 3,70 | 12,55 | 120,00 | 242,00 | 612250514 | Datenblatt | |
| 7 | 2,50 | 3,70 | 15,20 | 168,00 | 350,00 | 612250714 | Datenblatt |
