Multicore cables, PVC - ungeschirmt
Multicore cables, harmonisierte Leitungen

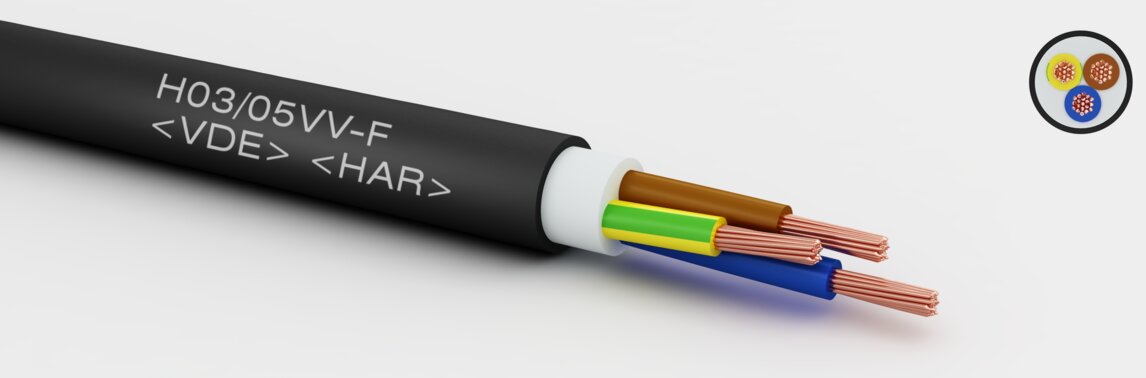

H05VV-F acc. EN 50525-2-11
Properties
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
colour code VDE0293 HD308
Outer sheath:
PVC acc. to VDE 0207 / EN 50363-4
technical data
Temperature range static:
-30 to 70 °C
Temperature range moved:
-5 to 70 °C
:
10 MOhm x km bei 20°C (min. )
static bending radius:
7,5 x outer diameter
Wall thickness:
0,80 mm
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 300 | 500 | 2000 |
- self-extinguishing
- flame retardand: IEC/EN 60332-1-2
Select visible columns
informationNo.of coresCross sectional area m²CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|
| 2 | 0,75 | 6,45 | 14,40 | 50,00 | 6057502 | Datenblatt | |
| 3 | 0,75 | 6,80 | 21,60 | 60,00 | 6057503 | Datenblatt | |
| 2 | 1,00 | 6,70 | 19,20 | 57,00 | 6051002 | Datenblatt | |
| 3 | 1,00 | 7,15 | 29,00 | 73,00 | 6051003 | Datenblatt | |
| 4 | 1,00 | 8,05 | 39,00 | 85,00 | 6051004 | Datenblatt | |
| 5 | 1,00 | 8,80 | 48,00 | 105,00 | 6051005 | Datenblatt | |
| 2 | 1,50 | 7,70 | 29,00 | 82,00 | 6051502 | Datenblatt | |
| 3 | 1,50 | 8,40 | 43,20 | 94,00 | 6051503 | Datenblatt | |
| 4 | 1,50 | 9,45 | 58,00 | 117,00 | 6051504 | Datenblatt | |
| 5 | 1,50 | 10,45 | 72,00 | 144,00 | 6051505 | Datenblatt | |
| 2 | 2,50 | 9,50 | 48,00 | 113,00 | 6052502 | Datenblatt | |
| 3 | 2,50 | 10,30 | 72,00 | 152,00 | 6052503 | Datenblatt | |
| 4 | 2,50 | 11,30 | 96,00 | 192,00 | 6052504 | Datenblatt | |
| 5 | 2,50 | 12,55 | 120,00 | 243,00 | 6052505 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
nach Harmonisierungsdokument
VDE
