Multicore cables, harmonisierte Leitungen
Multicore cables, Silicone

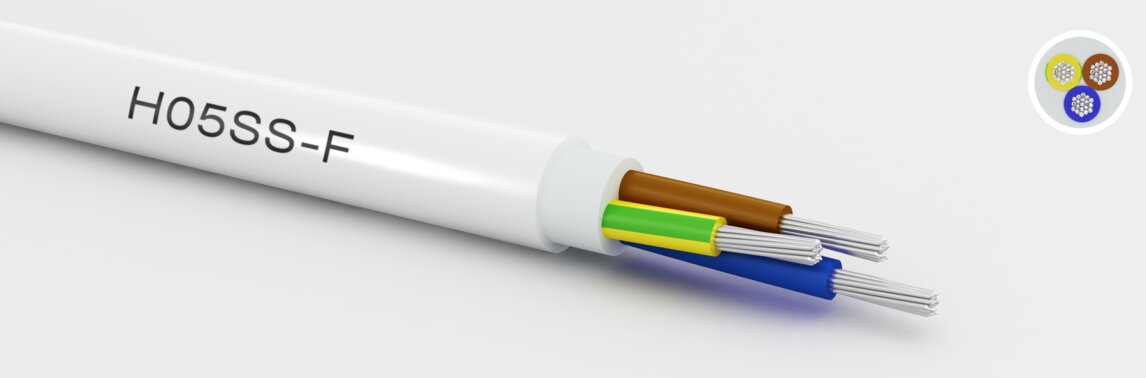

H05SS-F acc. EN 50525-2-83 (VDE 0285)
Properties
flame retardant
halogen-free
Construction
Stranding:
EN 60228; cl. 5
Core Isulation:
Silicone 2G acc. to EN 50363 / EI2
Color code cores:
VDE0293 HD308 with ye/gn (JB)
Outer sheath:
Silicone 2G acc. to EN 50363 / EM9
Jacket Colour:
RAL 9003 signal white
technical data
Conduct. cross-sect.:
0,75 mm²
Temperature range static:
-60 to 180 °C
:
10 MOhm x km bei 20°C (min. )
Wall thickness:
0,80 mm
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 300 | 500 | 2000 |
- flame retardant
- halogen-free
Select visible columns
informationNo.of coresCross sectional area m²Core ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|---|
| 2 | 0,75 | 2,40 | 6,55 | 14,40 | 54,00 | 643750242 | Datenblatt | |
| 3 | 0,75 | 2,40 | 7,15 | 21,60 | 64,00 | 643750342 | Datenblatt | |
| 4 | 0,75 | 2,40 | 7,80 | 28,80 | 92,00 | 643750442 | Datenblatt | |
| 5 | 0,75 | 2,40 | 8,75 | 36,00 | 114,00 | 643750542 | Datenblatt | |
| 2 | 1,00 | 2,50 | 7,05 | 19,20 | 71,00 | 643100242 | Datenblatt | |
| 3 | 1,00 | 2,50 | 7,50 | 28,80 | 86,00 | 643100342 | Datenblatt | |
| 4 | 1,00 | 2,50 | 8,20 | 38,40 | 106,00 | 643100442 | Datenblatt | |
| 5 | 1,00 | 2,50 | 9,15 | 48,00 | 106,00 | 643100542 | Datenblatt | |
| 2 | 1,50 | 3,20 | 8,70 | 28,20 | 109,00 | 643150232 | Datenblatt | |
| 3 | 1,50 | 3,20 | 9,20 | 44,00 | 98,00 | 643150342 | Datenblatt | |
| 4 | 1,50 | 3,20 | 10,30 | 58,00 | 168,00 | 643150442 | Datenblatt | |
| 5 | 1,50 | 3,20 | 11,25 | 72,00 | 203,00 | 643150542 | Datenblatt | |
| 2 | 2,50 | 3,80 | 10,30 | 48,00 | 157,00 | 643250242 | Datenblatt | |
| 3 | 2,50 | 3,80 | 11,00 | 72,00 | 179,00 | 643250342 | Datenblatt | |
| 4 | 2,50 | 3,80 | 12,25 | 96,00 | 248,00 | 643250442 | Datenblatt | |
| 5 | 2,50 | 3,80 | 13,60 | 120,00 | 307,00 | 643250542 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
nach Harmonisierungsdokument
