Multicore cables, harmonisierte Leitungen
Multicore cables, Neoprene

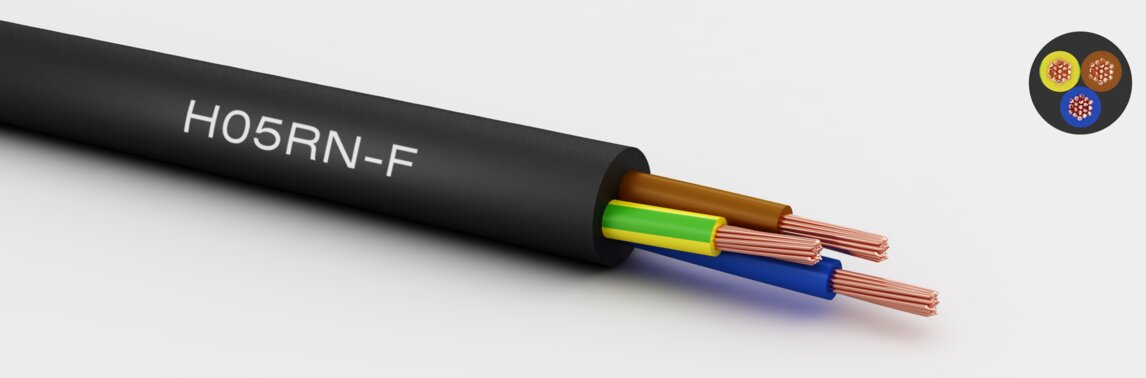

H05RN-F nach EN 50525-2-21 (VDE 0285)
Properties
flame retardant
good weather resistance
extensively resistant to oil
Construction
Conductor:
bare copper acc. to EN 13602
Stranding:
EN 60228; cl. 5
Core Isulation:
EI4 / Ethylen-Propylen-Elastomercompound
Color code cores:
VDE0293 HD308 with ye/gn (JB)
Outer sheath:
CR 5G EM5 acc.to EN 50363
Jacket Colour:
RAL 9005 jet black
technical data
Conduct. cross-sect.:
1,00 mm²
Temperature range static:
-25 to 60 °C
:
10 MOhm x km bei 20°C (min. )
static bending radius:
15,0 x outer diameter
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 300 | 500 | 2000 |
- flame retardant
- good weather resistance
- extensively resistant to oil
Select visible columns
informationNo.of coresCross sectional area m²Core ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|---|
| 2 | 0,75 | 2,40 | 6,55 | 14,40 | 54,40 | 621750232 | Datenblatt | |
| 3 | 0,75 | 2,40 | 7,15 | 21,60 | 94,00 | 621750332 | Datenblatt | |
| 2 | 1,00 | 2,55 | 7,05 | 19,20 | 58,00 | 621100232 | Datenblatt | |
| 3 | 1,00 | 2,55 | 7,50 | 28,80 | 114,00 | 621100332 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
nach Harmonisierungsdokument
VDE
