Single wires, harmonisierte Leitung
Single wires, halogenfrei

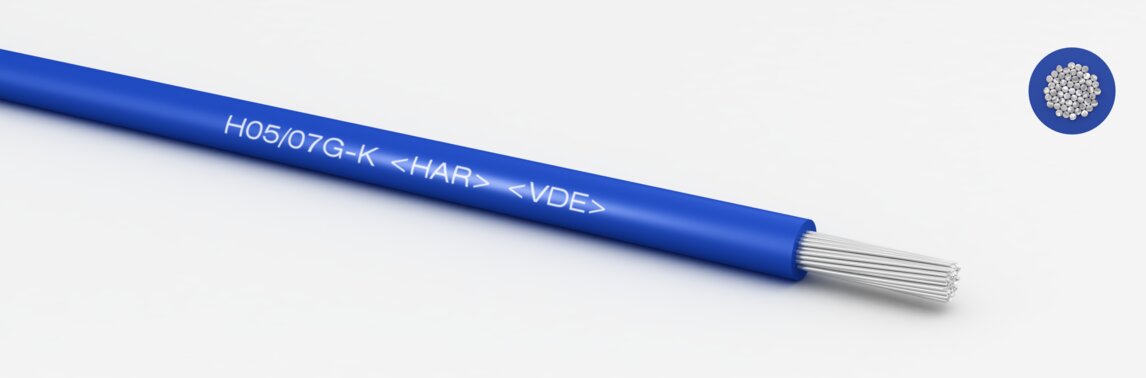

H05/07G-K acc. EN 50525-2-42
Properties
halogen-free
heat resistant
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
ethylen-vinylacetat-rubber 4G
technical data
Temperature range static:
-30 to 110 °C
Temperature range moved:
-25 to 110 °C
Operating Voltage
| Norm | Uo (AC) | U (AC) | Temperature °C | Test Voltage (AC) |
|---|---|---|---|---|
| H05G-K 0,50-1,00qmm | 300 | 500 | 110 | 2000 |
| H07G-K 1,50-240qmm | 450 | 750 | 110 | 2500 |
- halogen-free
- heat resistant
Select visible columns
informationCross sectional area m²StrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| Cross sectional area m² | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 0,50 | EN 60228; cl. 5 | 2,35 | 4,80 | 9,00 | 116050 | Datenblatt | |
| 0,75 | EN 60228; cl. 5 | 2,50 | 7,20 | 11,00 | 116075 | Datenblatt | |
| 1,00 | EN 60228; cl. 5 | 2,65 | 9,60 | 13,00 | 116100 | Datenblatt | |
| 1,50 | EN 60228; cl. 5 | 3,35 | 14,40 | 20,00 | 116150 | Datenblatt | |
| 2,50 | EN 60228; cl. 5 | 4,05 | 24,00 | 31,00 | 116250 | Datenblatt | |
| 4,00 | EN 60228; cl. 5 | 4,85 | 38,00 | 46,00 | 116400 | Datenblatt | |
| 6,00 | EN 60228; cl. 5 | 5,40 | 58,00 | 64,00 | 116600 | Datenblatt | |
| 10,00 | EN 60228; cl. 5 | 6,80 | 96,00 | 109,00 | 116101 | Datenblatt | |
| 16,00 | EN 60228; cl. 5 | 8,00 | 154,00 | 178,00 | 116161 | Datenblatt | |
| 25,00 | EN 60228; cl. 5 | 9,90 | 240,00 | 267,00 | 116251 | Datenblatt | |
| 35,00 | EN 60228; cl. 5 | 11,35 | 350,00 | 360,00 | 116351 | Datenblatt | |
| 50,00 | EN 60228; cl. 5 | 13,40 | 480,00 | 530,00 | 116501 | Datenblatt | |
| 70,00 | EN 60228; cl. 5 | 15,30 | 672,00 | 707,00 | 116701 | Datenblatt | |
| 95,00 | EN 60228; cl. 5 | 17,40 | 950,00 | 975,00 | 116951 | Datenblatt | |
| 120,00 | EN 60228; class 5 | 19,25 | 1150,00 | 1165,00 | 116121 | Datenblatt | |
| 150,00 | EN 60228; cl.5 | 21,40 | 1440,00 | 1560,00 | 116151 | Datenblatt | |
| 185,00 | EN 60228; class 5 | 23,65 | 1780,00 | 1805,00 | 116185 | Datenblatt | |
| 240,00 | EN 60228; cl.5 | 26,90 | 2350,00 | 2385,00 | 116240 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
nach Harmonisierungsdokument
