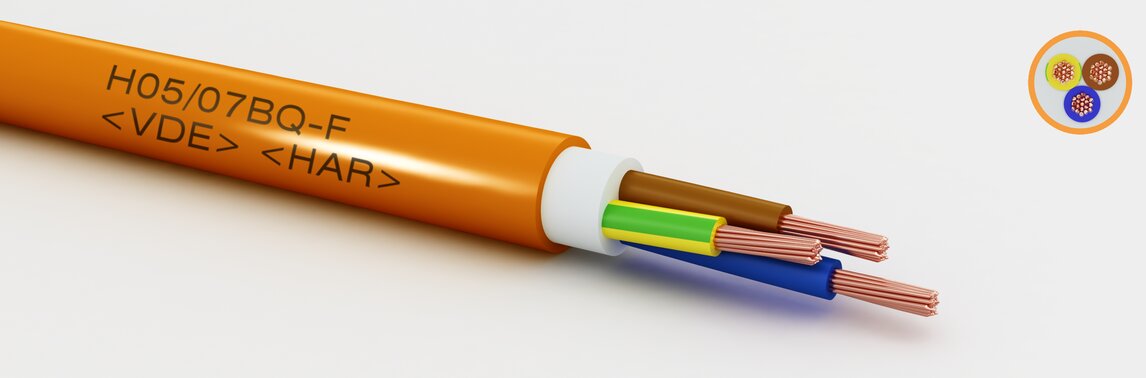

H05/07BQ-F acc. EN 50525-2-21 (VDE 0285)

Properties

Construction

Conductor:

bare copper acc. to EN 13602

Stranding:

EN 60228; cl. 5

Core Isulation:

EI6/7 Ethylen-Propylen-or equal synthetic compound

Color code cores:

VDE0293 HD308 with ye/gn (JB)

Outer sheath:

PUR 11Y

Jacket Colour:

RAL 2003 orange

technical data

Conduct. cross-sect.:

0,75 mm²

Temperature range static:

-40 to 80 °C

Temperature range moved:

-30 to 80 °C

10 MOhm x km bei 20°C (min. )

Bending radius dynamic:

12,5 x outer diameter

Operating Voltage

Norm	Uo (AC)	U (AC)	Temperature °C	Test Voltage (AC)
H05BQ-F 0,75-1,00qmm	300	500	90	2000
H07BQ-F 1,50-2,50qmm	450	750	90	2500

No.of cores	Cross sectional area m²	Core ∅ (mm)		CU-Index	total weight kg/km	Article number	datasheet
3	0,75	2,35	7,15	21,60	76,00	632750372	Datenblatt
4	0,75	2,35	7,80	29,00	92,00	632750472	Datenblatt
5	0,75	2,35	8,75	36,00	115,00	632750572	Datenblatt
2	1,00	2,55	7,05	19,20	71,00	632100272	Datenblatt
3	1,00	2,55	7,50	29,00	85,00	632100372	Datenblatt
4	1,00	2,55	8,20	38,40	106,00	632100472	Datenblatt
5	1,00	2,55	9,15	48,00	132,00	632100572	Datenblatt
3	1,50	3,35	9,20	43,20	122,00	632150372	Datenblatt
4	1,50	3,35	10,30	58,00	155,00	632150472	Datenblatt
5	1,50	3,35	11,25	72,00	186,00	632150572	Datenblatt
3	2,50	4,05	11,00	72,00	179,00	632250372	Datenblatt
4	2,50	4,05	12,25	96,00	226,00	632250472	Datenblatt
5	2,50	4,05	14,10	120,00	279,00	632250572	Datenblatt
