Multicore cables, PVC - ungeschirmt
Multicore cables, harmonisierte Leitungen

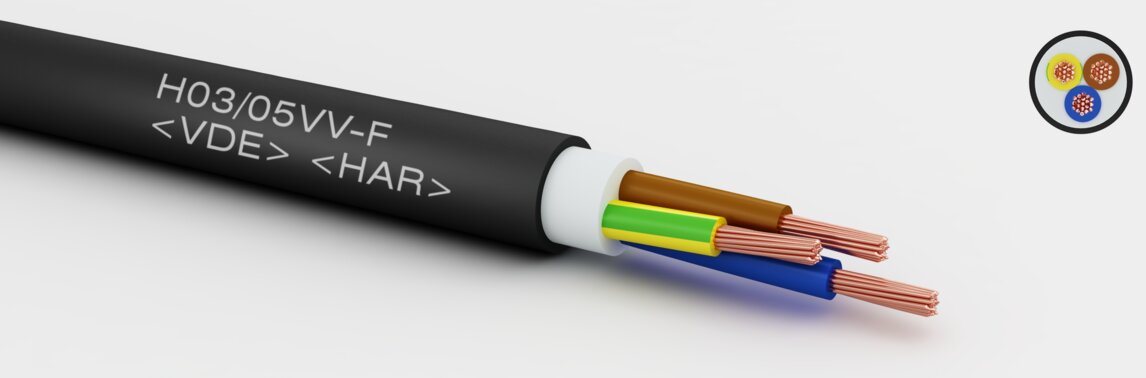

H03VV-F EN acc. 50525-2-11
Properties
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
colour code VDE0293 HD308
Outer sheath:
PVC acc. to VDE 0207 / EN 50363-4
technical data
Wall thickness:
0,50 mm
Temperature range static:
-30 to 70 °C
Temperature range moved:
-5 to 70 °C
:
10 MOhm x km bei 20°C (min. )
static bending radius:
7,5 x outer diameter
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 300 | 300 | 2000 |
- self-extinguishing
- flame retardand: IEC/EN 60332-1-2
Select visible columns
informationNo.of coresCross sectional area m²CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|
| 2 | 0,50 | 5,25 | 9,60 | 40,00 | 6035002 | Datenblatt | |
| 3 | 0,50 | 5,60 | 14,40 | 46,00 | 6035003 | Datenblatt | |
| 4 | 0,50 | 6,15 | 19,20 | 56,00 | 6035004 | Datenblatt | |
| 2 | 0,75 | 5,60 | 14,40 | 49,00 | 6037502 | Datenblatt | |
| 3 | 0,75 | 5,95 | 21,60 | 59,00 | 6037503 | Datenblatt | |
| 4 | 0,75 | 6,50 | 29,00 | 72,00 | 6037504 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
nach Harmonisierungsdokument
