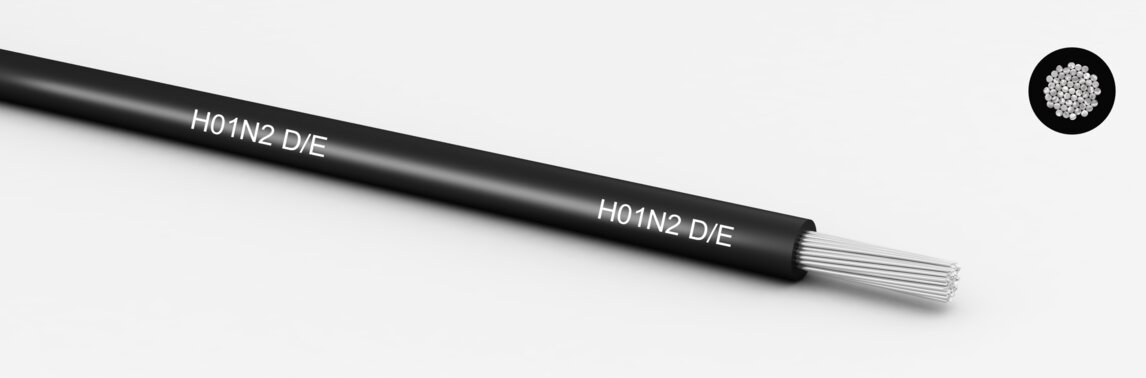

Single wires, harmonisierte Leitung
H01N2-D acc. EN 50525-2-81 (flexible)
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
EM5 coating compound for welding cable
technical data
Temperature range static:
-20 to 85 °C
Temperature range moved:
-20 to 85 °C
Operating Voltage
| Norm | Uo (AC) | U (AC) | Temperature °C | Test Voltage (AC) |
|---|---|---|---|---|
| H01N2-D | 100 | 100 | 1000 |
- flame retardand: IEC/EN 60332-1-2
Select visible columns
informationCross sectional area m²StrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| Cross sectional area m² | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 10,00 | EN 60228; class 6 | 8,70 | 96,00 | 115,00 | 47810108 | Datenblatt | |
| 120,00 | EN 60228; class 6 | 21,60 | 1152,00 | 1500,00 | 47812108 | Datenblatt | |
| 16,00 | EN 60228; class 6 | 9,90 | 154,00 | 195,00 | 47816008 | Datenblatt | |
| 25,00 | EN 60228; class 6 | 11,40 | 240,00 | 290,00 | 47825108 | Datenblatt | |
| 35,00 | EN 60228; class 6 | 12,80 | 340,00 | 374,00 | 47835108 | Datenblatt | |
| 50,00 | EN 60228; cl.6 | 14,85 | 480,00 | 551,00 | 47850108 | Datenblatt | |
| 70,00 | EN 60228; class 6 | 17,25 | 672,00 | 790,00 | 47870108 | Datenblatt | |
| 95,00 | EN 60228; class 6 | 19,25 | 950,00 | 1000,00 | 47895108 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
UK Conformity Assessment
nach Harmonisierungsdokument
