Multicore cables, PVC - ungeschirmt
Multicore cables, Vehicle wire

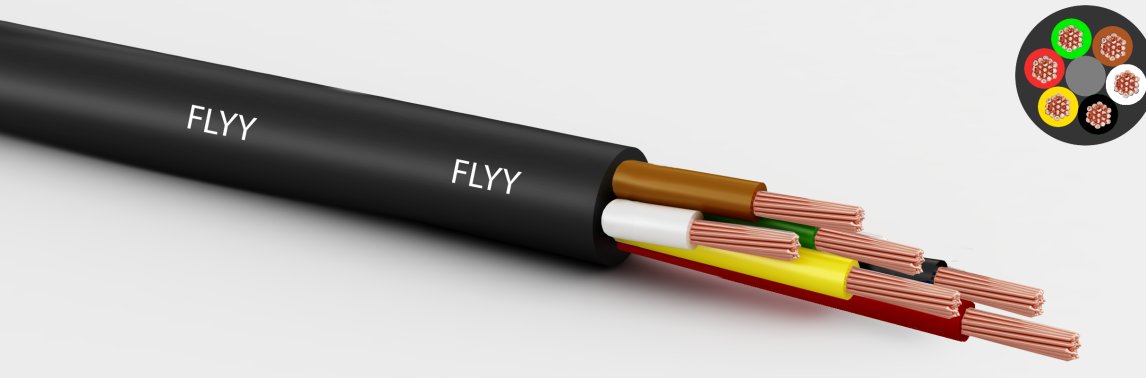

FLYY acc. ISO 19642-7
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
PVC according to ISO 6722 / ISO 19642
Outer sheath:
PVC acc. ISO 14572 / ISO 19642
technical data
Temperature range static:
-40 to 85 °C
:
20 MOhm x km bei 20°C (min. )
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 60 | 1000 |
- flame retardant acc. to ISO 6722/ISO 19642
- LABS-free
Select visible columns
informationNo.of coresCross sectional area m²StrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 1,50 | 30x0,26mm | 2,90 | 7,00 | 29,00 | 86,60 | 65715023P | Datenblatt | |
| 3 | 1,50 | 30x0,26mm | 2,90 | 7,60 | 45,00 | 96,00 | 657150339 | Datenblatt | |
| 4 | 1,50 | 30x0,26mm | 2,75 | 8,60 | 60,00 | 138,00 | 657150439 | Datenblatt | |
| 7 | 1,50 | 28x0,25mm | 2,75 | 10,40 | 105,00 | 181,00 | 65715073X | Datenblatt | |
| 2 | 2,50 | EN 60228; cl. 5 | 3,30 | 48,00 | 80,00 | 65725023PN01 | Datenblatt | ||
| 2 | 2,50 | EN 60228; cl. 5 | 3,50 | 8,80 | 48,00 | 116,80 | 65725023PT01 | Datenblatt | |
| 2 | 0,50 | 16x0,20mm | 2,30 | 5,70 | 9,60 | 36,00 | 657500232J01 | Datenblatt | |
| 3 | 0,75 | 24x0,20mm | 2,40 | 7,00 | 22,50 | 58,30 | 657750339 | Datenblatt | |
| 4 | 0,75 | 24x0,20mm | 2,20 | 6,20 | 30,00 | 70,00 | 657750439 | Datenblatt | |
| 7 | 0,75 | 24x0,20mm | 2,20 | 8,45 | 50,40 | 110,00 | 657750739 | Datenblatt |
Certificates
REACH konform
RoHS-konform
