Multicore cables, PVC - ungeschirmt
Multicore cables, Vehicle wire

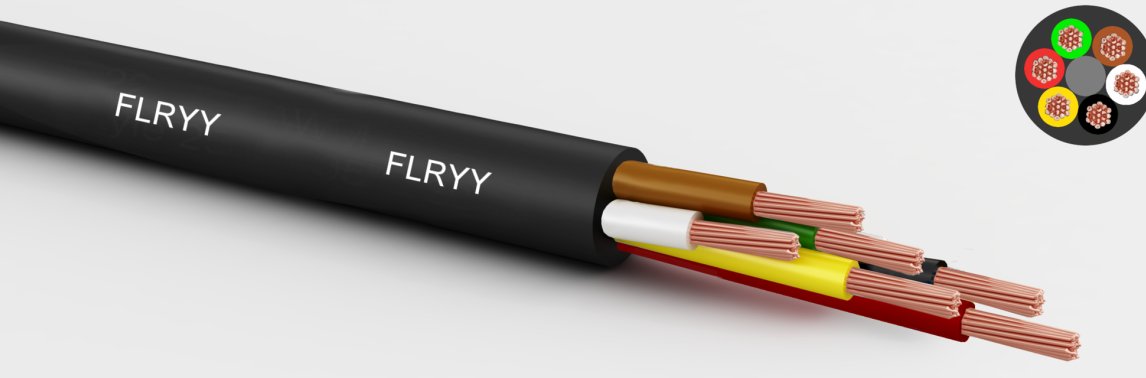

FLRYY acc. ISO 19642-7
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
PVC according to ISO 6722 / ISO 19642
Outer sheath:
PVC acc. ISO 14572 / ISO 19642
technical data
Temperature range static:
-40 to 85 °C
:
20 MOhm x km bei 20°C (min. )
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 60 | 1000 |
- flame retardant acc. to ISO 6722/ISO 19642
- LABS-free
Select visible columns
informationNo.of coresCross sectional area m²Core ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|---|
| 2 | 0,75 | 1,80 | 5,00 | 14,40 | 45,00 | 658750239 | Datenblatt | |
| 2 | 1,50 | 2,30 | 6,20 | 30,00 | 66,00 | 65815023XT01 | Datenblatt | |
| 5 | 1,50 | 2,20 | 8,10 | 75,00 | 121,00 | 658150539T01 | Datenblatt | |
| 7 | 1,50 | 2,40 | 8,90 | 105,00 | 168,00 | 658150739T01 | Datenblatt | |
| 8 | 1,50 | 2,30 | 9,50 | 120,00 | 179,50 | 658150839T01 | Datenblatt |
Certificates
REACH konform
RoHS-konform
