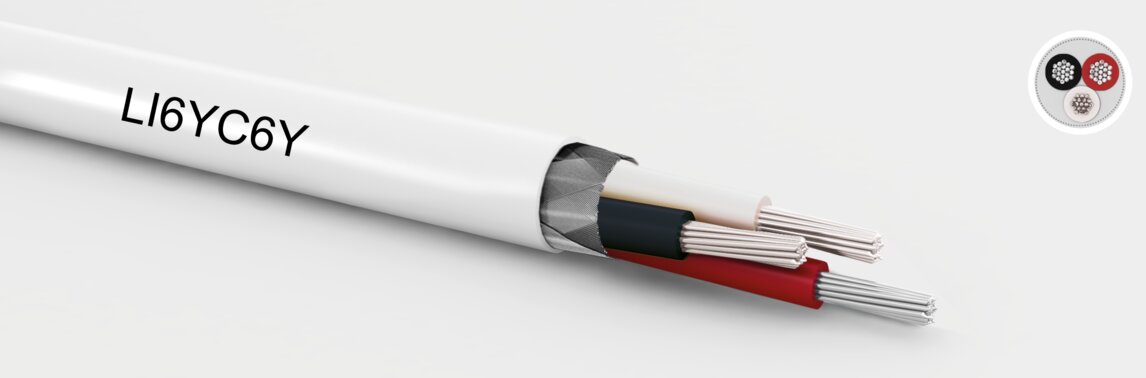

FEP Control Cable screened
Properties
flame retardant
low smoke density
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
FEP - 6Y
Color code cores:
1.wh, 2.rd, 3.bk, 4.bu
Outer sheath:
FEP - 6Y
Jacket Colour:
white
technical data
Temperature range static:
-65 to 180 °C
Temperature range moved:
-65 to 180 °C
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 600 | 1000 | 3400 |
- flame retardant
- low smoke density
Select visible columns
informationNo.of coresAWGCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | AWG | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|---|
| 2 | 20 | 1,27 | 4,10 | 24,19 | 32,00 | 76020024Q | Datenblatt | |
| 3 | 20 | 1,27 | 4,30 | 31,12 | 46,00 | 76020034Q | Datenblatt | |
| 4 | 20 | 1,27 | 4,90 | 38,43 | 56,00 | 76020044Q | Datenblatt | |
| 2 | 22 | 1,24 | 3,70 | 16,57 | 25,00 | 76022024Q | Datenblatt | |
| 3 | 22 | 1,24 | 3,80 | 20,25 | 34,00 | 76022034Q | Datenblatt | |
| 4 | 22 | 1,24 | 4,20 | 27,00 | 41,00 | 76022044Q | Datenblatt | |
| 2 | 24 | 1,09 | 3,40 | 12,53 | 20,00 | 76024024Q | Datenblatt | |
| 3 | 24 | 1,09 | 3,50 | 14,83 | 27,00 | 76024034Q | Datenblatt | |
| 4 | 24 | 1,12 | 3,70 | 18,48 | 32,00 | 76024044Q | Datenblatt | |
| 2 | 26 | 0,96 | 3,10 | 10,85 | 17,00 | 76026024Q | Datenblatt | |
| 3 | 26 | 0,96 | 3,20 | 12,32 | 22,00 | 76026034Q | Datenblatt | |
| 4 | 26 | 0,96 | 3,50 | 14,22 | 27,00 | 76026044Q | Datenblatt | |
| 2 | 28 | 0,84 | 2,80 | 9,91 | 14,00 | 76028024Q | Datenblatt | |
| 3 | 28 | 0,84 | 3,00 | 9,13 | 19,00 | 76028034Q | Datenblatt | |
| 4 | 28 | 0,84 | 3,30 | 11,27 | 22,00 | 76028044Q | Datenblatt | |
| 2 | 30 | 0,81 | 2,60 | 7,67 | 13,00 | 76030024Q | Datenblatt | |
| 3 | 30 | 0,81 | 2,80 | 8,22 | 16,00 | 76030034Q | Datenblatt | |
| 4 | 30 | 0,81 | 3,00 | 8,84 | 18,00 | 76030044Q | Datenblatt | |
| 2 | 32 | 0,74 | 2,40 | 6,02 | 11,00 | 76032024Q | Datenblatt | |
| 3 | 32 | 0,74 | 2,60 | 7,58 | 13,00 | 76032034Q | Datenblatt | |
| 4 | 32 | 0,74 | 2,90 | 7,91 | 16,00 | 76032044Q | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
