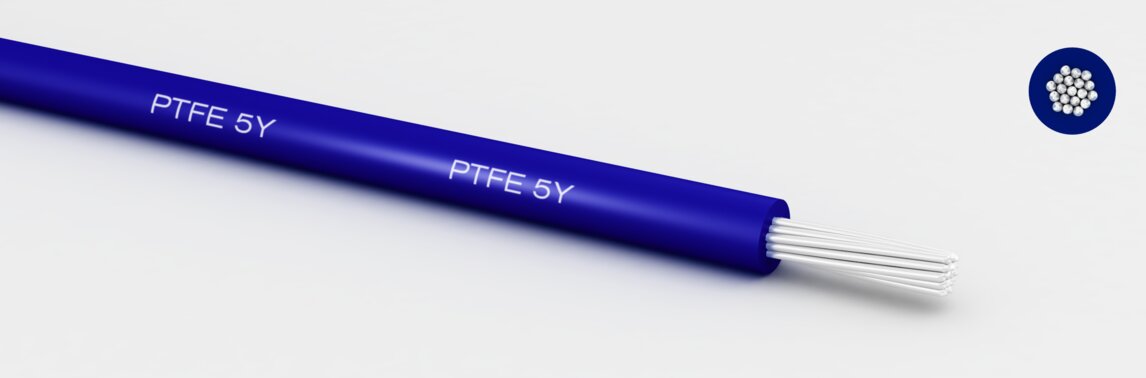

PTFE-Single wire (5Y) silver plated Typ E
Properties
flame retardant
good ozone resistance
good weather resistance
low smoke density
self-extinguishing
extensively resistant to oil
Construction
Conductor:
silver plated copper acc. to EN13602
Core Isulation:
PTFE - 5Y
technical data
Temperature range static:
-65 to 200 °C
Temperature range moved:
-65 to 200 °C
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| NEMA HP3 Typ E | 600 | 3400 |
- flame retardant
- good ozone resistance
- good weather resistance
- low smoke density
- self-extinguishing
- extensively resistant to oil
- largely resistant against acids and lyes
Einfarbig
According to the application of the cables, wires and single cores, the color of the core insulation has to be designed differently according to the applicable standards. An overview of possible colors and the associated color codes can be found here.
| AWG | Stranding | Core ∅ (mm) | CU-Index | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|
| 32 | 7x0,078mm | 0,56 | 0,40 | 5YS2327 | Datenblatt | |
| 32 | 1x0,203mm = 0,032mm² | 0,74 | 0,30 | 5YS6321 | Datenblatt | |
| 32 | 7x0,08mm = 0,034mm² | 0,76 | 0,40 | 5YS6327 | Datenblatt | |
| 30 | 1x0,254mm = 0,050mm² | 0,76 | 0,60 | 5YS6301 | Datenblatt | |
| 30 | 7x0,102mm = 0,057mm² | 0,81 | 0,60 | 5YS6307 | Datenblatt | |
| 28 | 1x0,330mm = 0,080mm² | 0,84 | 0,85 | 5YS6281 | Datenblatt | |
| 28 | 7x0,127mm = 0,089mm² | 0,89 | 0,80 | 5YS6287 | Datenblatt | |
| 26 | 1x0,409mm = 0,130mm² | 0,91 | 1,40 | 5YS6261 | Datenblatt | |
| 26 | 7x0,160mm = 0,141mm² | 0,99 | 1,40 | 5YS6267 | Datenblatt | |
| 26 | 19x0,102mm = 0,155mm² | 1,00 | 1,43 | 5YS6269 | Datenblatt | |
| 24 | 1x0,511mm = 0,200mm² | 1,02 | 2,30 | 5YS6241 | Datenblatt | |
| 24 | 7x0,203mm = 0,227mm² | 1,12 | 2,30 | 5YS6247 | Datenblatt | |
| 24 | 19x0,127mm = 0,241mm² | 1,13 | 2,30 | 5YS6249 | Datenblatt | |
| 22 | 1x0,643mm = 0,330mm² | 1,15 | 3,50 | 5YS6221 | Datenblatt | |
| 22 | 7x0,254mm = 0,355mm² | 1,27 | 3,50 | 5YS6227 | Datenblatt | |
| 22 | 19x0,160mm = 0,382mm² | 1,27 | 3,50 | 5YS6229 | Datenblatt | |
| 20 | 1x0,813mm = 0,520mm² | 1,32 | 5,60 | 5YS6201 | Datenblatt | |
| 20 | 19x0,182mm = 0,50mm² | 1,45 | 4,80 | 5YS6050L01 | Datenblatt | |
| 20 | 7x0,320mm = 0,563mm² | 1,47 | 5,60 | 5YS6207 | Datenblatt | |
| 20 | 19x0,203mm = 0,616mm² | 1,47 | 6,10 | 5YS6209 | Datenblatt | |
| 19 | 19x0,225mm = 0,75mm² | 1,65 | 7,30 | 5YS6075 | Datenblatt | |
| 18 | 1x1,020mm = 0,800mm² | 1,54 | 8,50 | 5YS6181 | Datenblatt | |
| 18 | 7x0,404mm = 0,897mm² | 1,75 | 8,50 | 5YS6187 | Datenblatt | |
| 18 | 19x0,254mm = 0,963mm² | 1,75 | 9,60 | 5YS6189 | Datenblatt | |
| 16 | 1x1,290mm = 1,31mm² | 1,87 | 12,78 | 5YS6161 | Datenblatt | |
| 16 | 19x0,32mm = 1,5mm² | 2,03 | 15,24 | 5YS6150L01 | ||
| 16 | 19x0,287mm = 1,229mm² | 2,03 | 14,40 | 5YS6169 | Datenblatt | |
| 15 | 19x0,361mm = 1,941mm² | 2,42 | 20,00 | 5YS6149 | Datenblatt | |
| 12 | 19x0,455mm | 2,90 | 32,00 | 5YS6129 | Datenblatt |
