Single wires, cores and wires with enhanced temperatur stability
Single wires, PTFE/FEP/ETFE

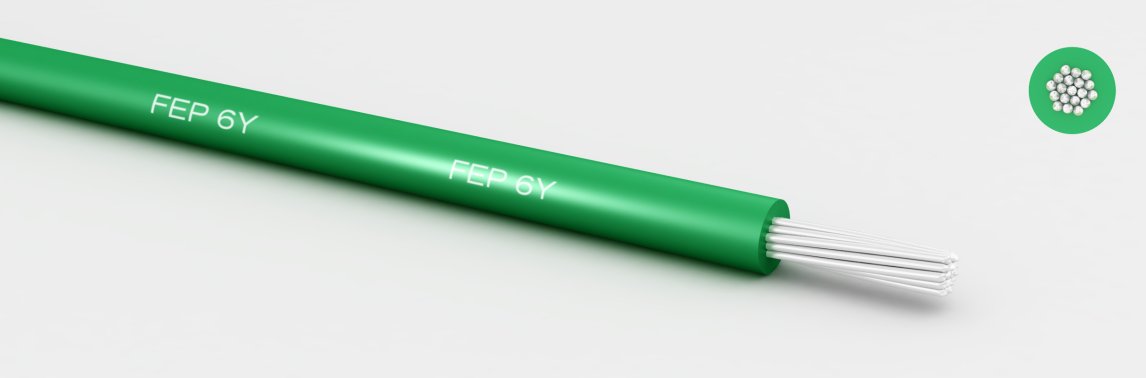

FEP-Single wires (6Y) tinned Typ KK
Properties
good weather resistance
self-extinguishing
resistant against acids, oils and chemicals
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
FEP - 6Y
technical data
Wall thickness:
0,51 mm
Temperature range static:
-65 to 180 °C
Temperature range moved:
-65 to 180 °C
:
100 MOhm x km bei 20°C (min. )
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| NEMA HP4 Typ KK | 1000 | 5000 |
- good weather resistance
- self-extinguishing
- resistant against acids, oils and chemicals
| AWG | Stranding | Core ∅ (mm) | CU-Index | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|
| 30 | 7x0,102mm = 0,057mm² | 1,07 | 0,55 | 6YV1307 | Datenblatt | |
| 28 | 7x0,127mm = 0,089mm² | 1,14 | 0,90 | 6YV1287 | Datenblatt | |
| 26 | 7x0,160mm = 0,141mm² | 1,24 | 1,40 | 6YV1267 | Datenblatt | |
| 24 | 7x0,203mm = 0,227mm² | 1,37 | 2,30 | 6YV1247 | Datenblatt | |
| 23 | 14x0,15mm = 0,25mm² | 1,38 | 2,40 | 6YV1025 | Datenblatt | |
| 22 | 7x0,254mm = 0,355mm² | 1,52 | 3,30 | 6YV1227 | Datenblatt | |
| 21 | 16x0,20mm = 0,50mm² | 1,68 | 4,80 | 6YV1050 | Datenblatt | |
| 20 | 7x0,320mm = 0,563mm² | 1,73 | 5,50 | 6YV1207 | Datenblatt | |
| 19 | 24x0,20mm = 0,75mm² | 1,90 | 7,30 | 6YV1075 | Datenblatt | |
| 18 | 19x0,254mm = 0,963mm² | 2,01 | 9,60 | 6YV1189 | Datenblatt | |
| 18 | 32x0,20mm (EN 60228 Cl.5) | 2,05 | 9,60 | 6YV1100 | Datenblatt | |
| 16 | 19x0,287mm = 1,229mm² | 2,26 | 13,50 | 6YV1169 | Datenblatt | |
| 16 | 30x0,25mm (EN 60228 Cl.5) | 2,35 | 14,40 | 6YV1150 | Datenblatt | |
| 14 | 50x0,25mm (EN 60228 Cl.5) | 2,88 | 24,00 | 6YV1250 | Datenblatt | |
| 12 | 56x0,30mm (EN 60228 Cl.5) | 3,45 | 38,50 | 6YV1400 | Datenblatt | |
| 10 | 84x0,30mm (EN 60228 Cl.5) | 4,24 | 58,00 | 6YV1600 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
