Single wires, cores and wires with enhanced temperatur stability
Single wires, PTFE/FEP/ETFE

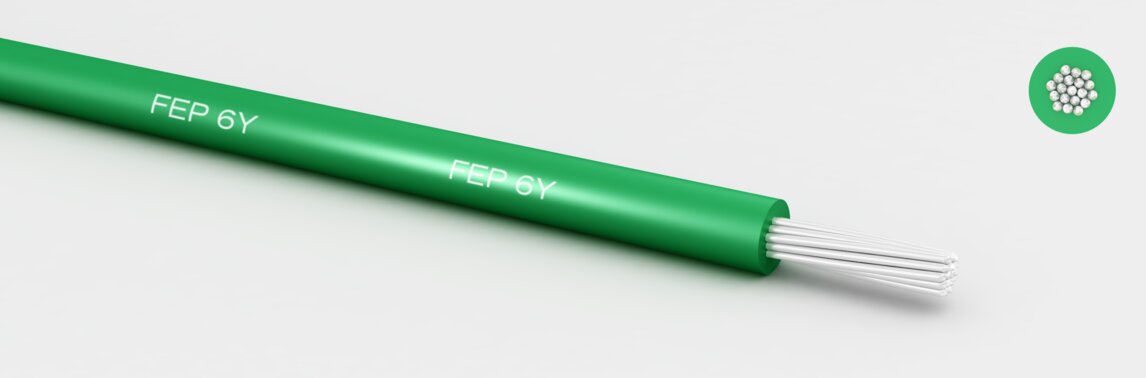

FEP-Single wires (6Y) tinned Typ K
Properties
good weather resistance
self-extinguishing
resistant against acids, oils and chemicals
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
FEP - 6Y
technical data
Wall thickness:
0,51 mm
Temperature range static:
-65 to 180 °C
Temperature range moved:
-65 to 180 °C
:
100 MOhm x km bei 20°C (min. )
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| NEMA HP4 Typ K | 600 | 3400 |
- good weather resistance
- self-extinguishing
- resistant against acids, oils and chemicals
- manufactured acc. NEMA HP4
- available: nom. volt. : 250V test volt. : 2500V
- available: nom. volt.: 1000V test volt.: 5000V
- available: conductor silver plated +200°C
Einfarbig
According to the application of the cables, wires and single cores, the color of the core insulation has to be designed differently according to the applicable standards. An overview of possible colors and the associated color codes can be found here.
Select visible columns
informationAWGStrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| AWG | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 30 | 7x0,102mm = 0,057mm² | 0,81 | 0,60 | 1,50 | 6YV6307 | Datenblatt | |
| 28 | 7x0,127mm = 0,089mm² | 0,90 | 0,90 | 2,00 | 6YV6287 | Datenblatt | |
| 26 | 7x0,160mm = 0,141mm² | 0,99 | 1,50 | 3,10 | 6YV6267 | Datenblatt | |
| 24 | 7x0,203mm = 0,227mm² | 1,12 | 2,10 | 4,00 | 6YV6247 | Datenblatt | |
| 22 | 7x0,254mm = 0,355mm² | 1,32 | 3,30 | 5,20 | 6YV6227 | Datenblatt | |
| 21 | 16x0,20mm = 0,50mm² | 1,45 | 4,80 | 6,70 | 6YV6050 | Datenblatt | |
| 20 | 7x0,320mm = 0,563mm² | 1,47 | 5,60 | 7,20 | 6YV6207 | Datenblatt | |
| 19 | 24x0,20mm = 0,75mm² | 1,65 | 7,20 | 9,50 | 6YV6075 | Datenblatt | |
| 18 | 19x0,254mm = 0,963mm² | 1,75 | 9,80 | 12,00 | 6YV6189 | Datenblatt | |
| 18 | 32x0,20mm = 1,00mm² | 1,87 | 9,60 | 13,00 | 6YV6100 | Datenblatt | |
| 16 | 19x0,287mm = 1,229mm² | 2,03 | 11,80 | 16,00 | 6YV6169 | Datenblatt | |
| 16 | 30x0,25mm = 1,50mm² | 2,08 | 14,90 | 17,20 | 6YV6150 | Datenblatt | |
| 14 | 50x0,25mm = 2,5mm² | 2,68 | 24,00 | 28,00 | 6YV6250 | Datenblatt | |
| 12 | 56x0,30mm = 4,00mm² | 3,13 | 38,50 | 42,00 | 6YV6400 | Datenblatt | |
| 10 | 84x0,30mm | 3,93 | 58,00 | 62,00 | 6YV6600 | Datenblatt | |
| 4 | 14x0,15mm | 1,16 | 2,40 | 3,90 | 6YV6025 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
