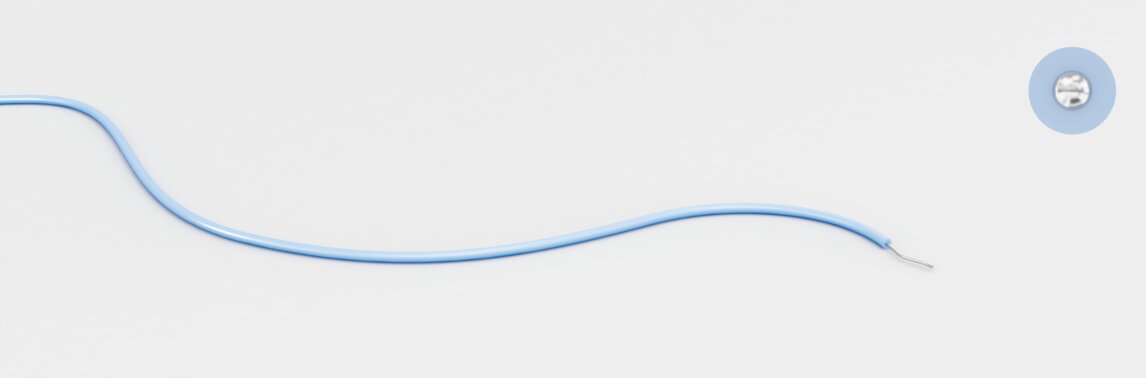

ETFE-Wire-Wrap-Solid wires
Properties
good ozone resistance
good weather resistance
resistant against acids, oils and chemicals
Construction
Conductor:
CU-OF1 acc. EN 13602 silver plated
Core Isulation:
ETFE - 7Y
technical data
Temperature range static:
-65 to 150 °C
Temperature range moved:
-65 to 150 °C
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 300 | 2500 |
- good ozone resistance
- good weather resistance
- resistant against acids, oils and chemicals
Select visible columns
informationAWGStrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| AWG | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 32 | 1x0,203mm | 0,50 | 0,40 | 0,60 | 7YS3321 | Datenblatt | |
| 30 | 1x0,254mm | 0,55 | 0,60 | 0,80 | 7YS3301 | Datenblatt | |
| 28 | 1x0,32mm | 0,62 | 0,90 | 1,10 | 7YS3281 | Datenblatt | |
| 26 | 1x0,409mm | 0,75 | 1,40 | 1,60 | 7YS3261 | Datenblatt | |
| 24 | 1x0,511mm | 0,81 | 2,10 | 2,30 | 7YS3241 | Datenblatt | |
| 22 | 1x0,643mm | 0,94 | 3,30 | 3,50 | 7YS3221 | Datenblatt | |
| 20 | 1x0,813mm | 1,10 | 5,50 | 6,60 | 7YS3201 | Datenblatt | |
| 18 | 1x1,020mm | 1,30 | 7,90 | 8,70 | 7YS3181 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
