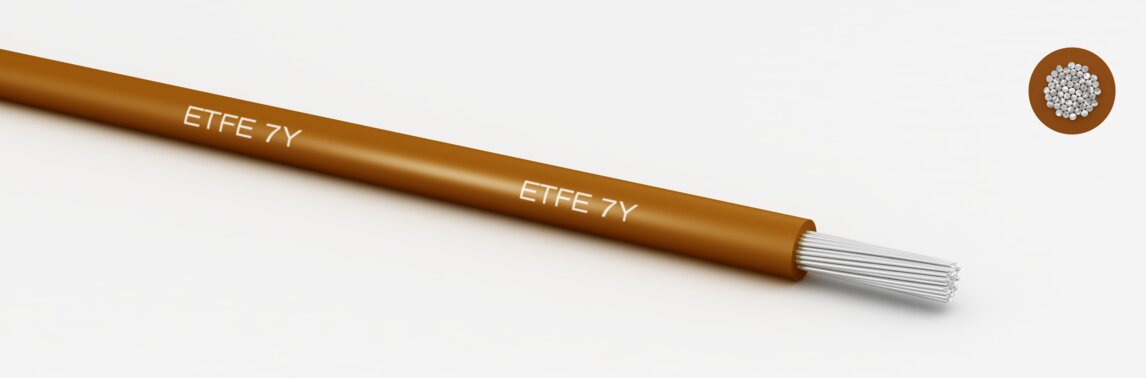

ETFE-Single wires (7Y) tinned
Properties
good ozone resistance
good weather resistance
resistant against acids, oils and chemicals
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
ETFE - 7Y
technical data
Wall thickness:
0,28 mm
Temperature range static:
-65 to 150 °C
Temperature range moved:
-65 to 150 °C
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 600 | 3400 |
- good ozone resistance
- good weather resistance
- resistant against acids, oils and chemicals
Einfarbig
According to the application of the cables, wires and single cores, the color of the core insulation has to be designed differently according to the applicable standards. An overview of possible colors and the associated color codes can be found here.
Select visible columns
informationCross sectional area m²StrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| Cross sectional area m² | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 0,25 | 14x0,15mm | 1,18 | 2,40 | 4,00 | 7YV6025 | Datenblatt | |
| 0,50 | 16x0,20mm | 1,53 | 4,80 | 6,30 | 7YV6050 | Datenblatt | |
| 0,75 | 24x0,20mm | 1,69 | 7,20 | 9,00 | 7YV6075 | Datenblatt | |
| 1,00 | 32x0,20mm | 1,80 | 9,60 | 11,00 | 7YV6100 | Datenblatt | |
| 1,50 | 30x0,25mm | 2,35 | 14,40 | 18,00 | 7YV6150 | Datenblatt | |
| 2,50 | 50x0,25mm | 2,87 | 24,00 | 28,00 | 7YV6250 | Datenblatt | |
| 4,00 | 56x0,30mm | 3,45 | 38,00 | 40,00 | 7YV6400 | Datenblatt | |
| 6,00 | 84x0,30mm | 3,95 | 58,00 | 62,00 | 7YV6600 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
