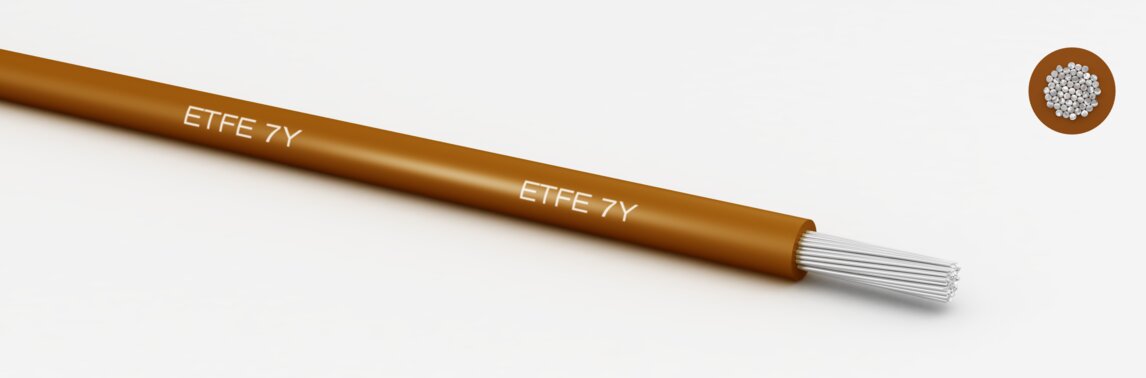

ETFE-Single wires (7Y) tinned Typ ZT
Properties
flame retardant
low smoke density
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
ETFE - 7Y
technical data
Wall thickness:
0,28 mm
Temperature range static:
-65 to 150 °C
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 250 | 2500 |
- flame retardant
- low smoke density
| AWG | Stranding | Core ∅ (mm) | CU-Index | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|
| 30 | 7x0,102mm | 0,61 | 0,60 | 7YV2307ZT0 | Datenblatt | |
| 28 | 7x0,13mm | 0,68 | 0,90 | 7YV2287ZT0 | Datenblatt | |
| 26 | 7x0,160mm | 0,81 | 1,40 | 7YV2267ZT0 | Datenblatt | |
| 26 | 19x0,102mm | 0,81 | 1,60 | 7YV2269ZT0 | Datenblatt | |
| 24 | 7x0,200mm | 0,91 | 2,10 | 7YV2247ZT0 | Datenblatt | |
| 24 | 19x0,13mm | 0,91 | 2,40 | 7YV2249ZT0 | Datenblatt | |
| 22 | 7x0,250mm | 1,09 | 4,40 | 7YV2227ZT0 | Datenblatt | |
| 22 | 19x0,160mm | 1,09 | 3,80 | 7YV2229ZT0 | Datenblatt | |
| 20 | 7x0,320mm | 1,30 | 5,60 | 7YV2207ZT0 | Datenblatt | |
| 20 | 19x0,203mm | 1,30 | 6,10 | 7YV2209ZT0 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
