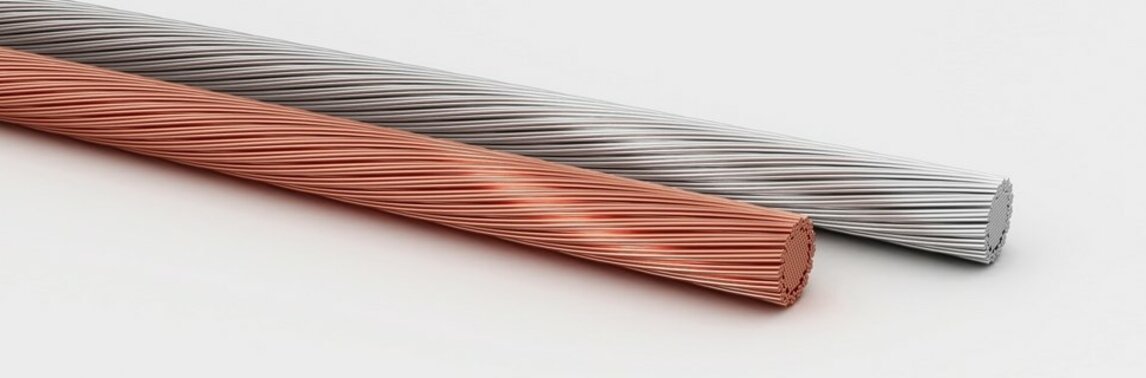

Copper round ropes tinned

Construction technical data Properties

Construction

Core Isulation:

without insulation

Approval:

in acc. to DIN 46438

technical data

Cross sectional area m²	Stranding	CU-Index	Article number	datasheet
1,50	385x0,07mm	15,00	1R15007	Datenblatt
2,50	651x0,07mm	25,00	1R25007	Datenblatt
4,00	1036x0,07mm	40,00	1R40007	Datenblatt
6,00	1575x0,07mm	60,00	1R60007	Datenblatt
10,00	2562x0,07mm	100,00	1R10107	Datenblatt
16,00	4116x0,07mm	160,00	1R16107	Datenblatt
25,00	3234x0,10mm	250,00	1R25110	Datenblatt
35,00	4508x0,10mm	57,75	1R35110	Datenblatt
50,00	6468x0,10mm	500,00	1R50110	Datenblatt
70,00	8967x0,10mm	700,00	1R70110	Datenblatt
95,00	12201x0,10mm	950,00	1R95110	Datenblatt
