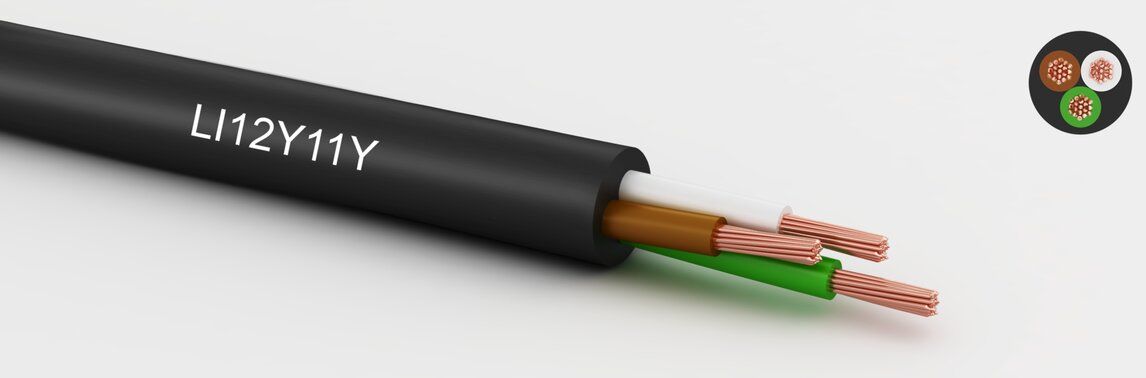

Control cable TPE-E/PUR unscreened
Properties
halogen-free
microbes resistant
resistant to hydrolysis
extensively resistant to oil
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
TPE 12Y - thermoplastic compound
Color code cores:
DIN 47100
Outer sheath:
PUR 11Y
Jacket Colour:
RAL 9005 jet black
technical data
Temperature range static:
-40 to 90 °C
Temperature range moved:
-25 to 90 °C
- halogen-free
- microbes resistant
- resistant to hydrolysis
- extensively resistant to oil
Select visible columns
informationNo.of coresCross sectional area m²StrandingCU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | Stranding | CU-Index | total weight kg/km | Article number | datasheet | inquiry | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 0,14 | 18x0,10mm | 2,70 | 350 | 2,80 | 9,20 | 629140231 | Datenblatt | |
| 3 | 0,14 | 18x0,10mm | 2,90 | 350 | 4,10 | 11,40 | 629140331 | Datenblatt | |
| 4 | 0,14 | 18x0,10mm | 3,10 | 350 | 5,50 | 13,50 | 629140431 | Datenblatt | |
| 8 | 0,14 | 18x0,10mm | 4,00 | 350 | 10,90 | 23,20 | 629140831 | Datenblatt | |
| 2 | 0,25 | 14x0,15mm | 3,20 | 600 | 4,80 | 13,70 | 629250231 | Datenblatt | |
| 3 | 0,25 | 14x0,15mm | 3,30 | 600 | 7,20 | 16,40 | 629250331 | Datenblatt | |
| 4 | 0,25 | 14x0,15mm | 3,50 | 600 | 9,60 | 19,50 | 629250431 | Datenblatt | |
| 8 | 0,25 | 14x0,15mm | 4,70 | 600 | 19,20 | 35,20 | 629250831 | Datenblatt | |
| 2 | 0,34 | 19x0,15mm | 3,40 | 600 | 6,60 | 16,40 | 629340231 | Datenblatt | |
| 3 | 0,34 | 19x0,15mm | 3,60 | 600 | 9,80 | 20,50 | 629340331 | Datenblatt | |
| 4 | 0,34 | 19x0,15mm | 3,90 | 600 | 13,10 | 25,20 | 629340431 | Datenblatt | |
| 8 | 0,34 | 19x0,15mm | 5,40 | 600 | 26,20 | 44,20 | 629340831 | Datenblatt | |
| 2 | 0,50 | 16x0,20mm | 4,00 | 600 | 10,00 | 23,00 | 629500231 | Datenblatt | |
| 3 | 0,50 | 16x0,20mm | 4,20 | 600 | 14,50 | 28,70 | 629500331 | Datenblatt | |
| 4 | 0,50 | 16x0,20mm | 5,00 | 600 | 20,00 | 36,00 | 629500431 | Datenblatt | |
| 8 | 0,50 | 16x0,20mm | 6,00 | 600 | 38,70 | 61,10 | 629500831 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
UK Conformity Assessment
