Multicore cables, halogenfreie Leitungen
Multicore cables, Control cables

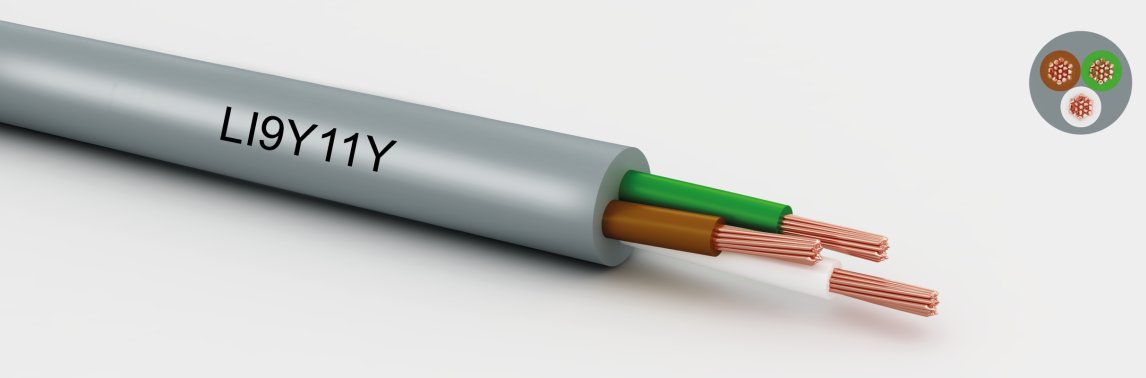

Control cable PP/PUR unscreened
Properties
halogen-free
microbes resistant
good weather resistance
resistant to hydrolysis
extensively resistant to oil
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
PP 9Y
Color code cores:
DIN 47100
Outer sheath:
PUR 11Y
Jacket Colour:
RAL 9005 jet black
technical data
Temperature range static:
-40 to 90 °C
Temperature range moved:
-25 to 90 °C
:
20 MOhm x km bei 20°C (min. )
static bending radius:
8,0 x outer diameter
Bending radius dynamic:
12,0 x outer diameter
- halogen-free
- microbes resistant
- good weather resistance
- resistant to hydrolysis
- extensively resistant to oil
Select visible columns
informationNo.of coresCross sectional area m²StrandingCU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | Stranding | CU-Index | total weight kg/km | Article number | datasheet | inquiry | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 0,14 | 18x0,10mm | 2,80 | 0 | 2,80 | 9,30 | 654140231 | Datenblatt | |
| 3 | 0,14 | 18x0,10mm | 3,10 | 0 | 4,20 | 11,90 | 654140331 | Datenblatt | |
| 4 | 0,14 | 18x0,10mm | 3,30 | 0 | 5,60 | 13,90 | 654140431 | Datenblatt | |
| 6 | 0,14 | 18x0,10mm | 3,90 | 0 | 8,40 | 19,00 | 654140631 | Datenblatt | |
| 8 | 0,14 | 18x0,10mm | 4,20 | 0 | 11,20 | 23,20 | 654140831 | Datenblatt | |
| 2 | 0,25 | 14x0,15mm | 3,30 | 0 | 4,80 | 13,70 | 654250231 | Datenblatt | |
| 3 | 0,25 | 14x0,15mm | 3,70 | 0 | 7,20 | 18,00 | 654250331 | Datenblatt | |
| 4 | 0,25 | 14x0,15mm | 4,00 | 0 | 9,60 | 21,90 | 654250431 | Datenblatt | |
| 6 | 0,25 | 14x0,15mm | 4,70 | 0 | 14,40 | 30,10 | 654250631 | Datenblatt | |
| 8 | 0,25 | 14x0,15mm | 5,10 | 0 | 19,20 | 36,00 | 654250831 | Datenblatt | |
| 2 | 0,34 | 19x0,15mm | 3,70 | 0 | 7,00 | 17,60 | 654340231 | Datenblatt | |
| 3 | 0,34 | 19x0,15mm | 3,90 | 0 | 10,50 | 21,70 | 654340331 | Datenblatt | |
| 4 | 0,34 | 19x0,15mm | 4,20 | 0 | 14,00 | 26,30 | 654340431 | Datenblatt | |
| 6 | 0,34 | 19x0,15mm | 5,00 | 0 | 21,00 | 37,10 | 654340631 | Datenblatt | |
| 8 | 0,34 | 19x0,15mm | 5,40 | 0 | 28,00 | 44,30 | 654340831 | Datenblatt | |
| 2 | 0,50 | 16x0,20mm | 4,20 | 0 | 9,70 | 23,80 | 654500231 | Datenblatt | |
| 3 | 0,50 | 16x0,20mm | 4,40 | 0 | 14,50 | 29,10 | 654500331 | Datenblatt | |
| 4 | 0,50 | 16x0,20mm | 4,80 | 0 | 19,40 | 36,30 | 654500431 | Datenblatt | |
| 6 | 0,50 | 16x0,20mm | 5,70 | 0 | 29,00 | 51,10 | 654500631 | Datenblatt | |
| 8 | 0,50 | 16x0,20mm | 6,30 | 0 | 38,80 | 61,70 | 654500831 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
UK Conformity Assessment
