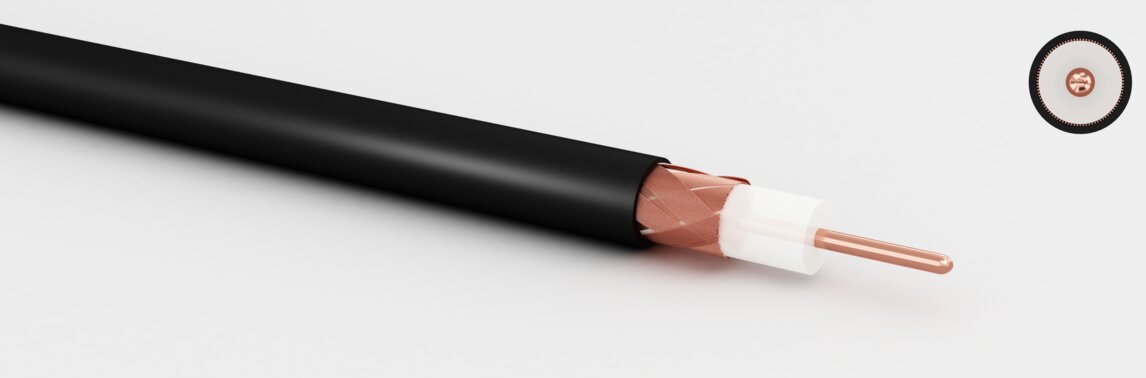

Medikabel - Coaxial cables

Norm		Stranding	Conductor	Core Insulation	Core ∅ (mm)	Shielding	Outer sheath		total weight kg/km	Article number	datasheet
RG 6	75	19x0,16mm	bare copper-covered steel conductor	PE 2Y	4,70	copper braid bare	PVC acc. to VDE 0207 / EN 50363-4	8,50	115,00	2270006	Datenblatt
RG 8	50	7x0,70mm	bare copper acc. to EN 13602	PE 2Y	6,40	copper braid bare	PVC acc. to VDE 0207 / EN 50363-4	9,50	128,00	2270008	Datenblatt
RG 11	75	7x0,40mm	tin plated copper acc. to EN13602	PE 2Y	7,30	copper braid bare	PVC acc. to VDE 0207 / EN 50363-4	10,20		2270011	Datenblatt
RG 58	50	19x0,182mm	tin plated copper acc. to EN13602	PE 2Y	2,95	copper braid tinned; coverage >90%	PVC	4,95	38,00	2270058	Datenblatt
RG 59	75	1x0,58mm	bare copper-covered steel conductor	PE 2Y	3,70	copper braid bare	PVC	6,15	51,00	2270059	Datenblatt
RG 62	93	1x0,65mm	bare copper-covered steel conductor	PE 2Y	3,70	copper braid bare	PVC acc. EN50363-4	6,15	52,00	2270062	Datenblatt
2	93	1x0,64mm	bare copper-covered steel conductor	PE 2Y	3,70	CU braid bc. opt. cov. 95%	PE 2Y	6,20	62,00	2270071	Datenblatt
RG 142	50	1x0,94mm	silver plated copper-covered steel conductor	PTFE - 5Y	2,95	copper braid silver plated; cov. >85%	FEP - 6Y	4,95	64,00	2270142	Datenblatt
RG 174	50	7x0,16mm	bare copper-covered steel conductor	PE 2Y	1,50	tinned copper braid	PVC acc. EN50363-4	2,80	11,00	2270174	Datenblatt
RG 178	50	7x0,10mm	silver plated copper-covered steel conductor	PTFE - 5Y	0,84	copper braid silver plated; cov. >85%	FEP - 6Y	1,80	8,00	2270178	Datenblatt
RG 179	75	7x0,10mm	silver plated copper-covered steel conductor	PTFE - 5Y	1,60	copper braid silver plated; cov. >85%	FEP - 6Y	2,54	15,00	2270179	Datenblatt
RG 180	95	7x0,10mm	silver plated copper-covered steel conductor	PTFE - 5Y	2,59	copper braid silver plated; cov. >85%	FEP - 6Y	3,58	29,00	2270180	Datenblatt
RG 187	75	7x0,10mm	silver plated copper-covered steel conductor	PTFE - 5Y	1,60	copper braid silver plated; cov. >85%	PFA - 51Y	2,54	16,00	2270187	Datenblatt
RG 188	50	7x0,17mm	silver plated copper-covered steel conductor	PTFE - 5Y	1,52	copper braid silver plated; cov. >85%	PFA - 51Y	2,59	17,00	2270188	Datenblatt
RG 196	50	7x0,10mm	silver plated copper-covered steel conductor	PTFE - 5Y	0,84	copper braid silver plated; cov. >85%	PTFE - 5Y	1,94	10,00	2270196	Datenblatt
RG 213	50	7x0,75mm	bare copper acc. to EN 13602	PE 2Y	7,30	copper braid bare	PVC acc. to VDE 0207 / EN 50363-4	10,30	159,00	2270213	Datenblatt
RG 214	50	7x0,75mm	silver plated copper acc. to EN13602	PE 2Y	7,25	copper braid silver plated; cov. >85%	PVC acc. to VDE 0207 / EN 50363-4	10,80	205,00	2270214	Datenblatt
RG 216	75	7x0,40mm	tin plated copper acc. to EN13602	PE 2Y	7,30	copper braid bare	PVC acc. to VDE 0207 / EN 50363-4	10,80	156,00	2270216	Datenblatt
RG 217	50	1x2,70mm	bare copper acc. to EN 13602	PE 2Y	9,40	copper braid bare	PVC acc. to VDE 0207 / EN 50363-4	13,84	290,00	2270217	Datenblatt
RG 218	50	1x4,95mm	bare copper acc. to EN 13602	PE 2Y	17,27	copper braid bare	PVC acc. to VDE 0207 / EN 50363-4	22,10	710,00	2270218	Datenblatt
RG 223	50	1x0,90mm	silver plated copper acc. to EN13602	PE 2Y	2,95	tinned copper braid; coverage >85%	Special PVC	5,40	62,00	2270223	Datenblatt
RG 302	75	1x0,64mm	silver plated copper-covered steel conductor	PTFE - 5Y	3,71	copper braid silver plated; cov. >85%	FEP - 6Y	5,13	46,00	2270302	Datenblatt
RG 316	50	7x0,17mm	silver plated copper-covered steel conductor	PTFE - 5Y	1,52	copper braid silver plated; cov. >85%	FEP - 6Y	2,50	15,00	2270316	Datenblatt
RG 393	50	7x0,80mm	silver plated copper acc. to EN13602	PTFE - 5Y	7,24	copper braid silver plated; cov. >85%	FEP - 6Y	9,90		2270393	Datenblatt
RG 400	50	19x0,20mm	silver plated copper acc. to EN13602	PTFE - 5Y	2,95	copper braid silver plated; cov. >85%	FEP - 6Y	4,95	75,00	2270400	Datenblatt
