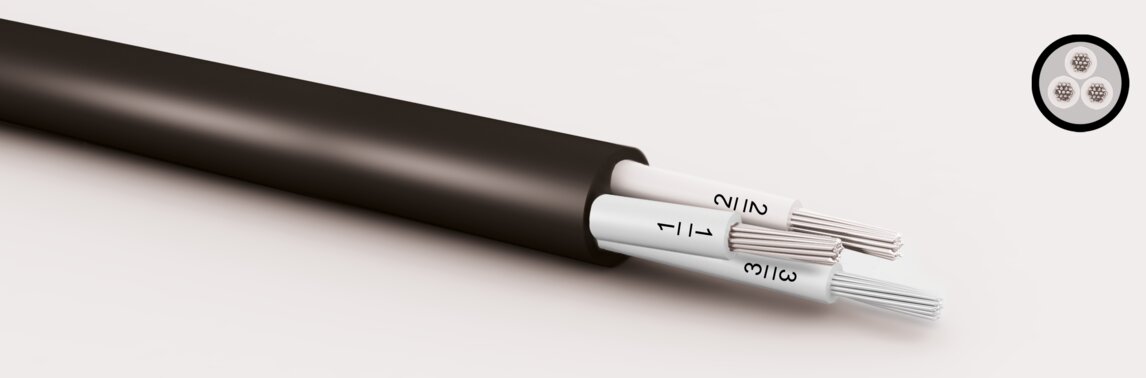

BETAtrans GKW-ENX flex R 600 V MM 105
Properties
resistance to oil and fuel / gasoline
good UV resistance
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
PO copolymer crosslinked
Color code cores:
white cores with black numbers without ye/gn (OZ)
Outer sheath:
PO copolymer crosslinked
Jacket Colour:
black
technical data
Temperature range static:
-40 to 125 °C
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 600 | 1000 | 3500 |
- resistance to oil and fuel / gasoline
- good UV resistance
- low smoke density EN 61034
- no corrosive gases: IEC60754-2; EN50267-2
- toxic gases: NES02-713; NF X 70-100
- halogen free: IEC 60754-1; EN 50267-2-1
- flame retardand: IEC/EN 60332-1-2
- flame retardant IEC60332-3
Select visible columns
informationNo.of coresCross sectional area m²StrandingCU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | Stranding | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|---|
| 2 | 1,00 | EN 60228; cl. 5 | 5,40 | 19,20 | 48,00 | 6BD10023W | Datenblatt | |
| 3 | 1,00 | EN 60228; cl. 5 | 5,50 | 28,80 | 58,00 | 6BD10033W | Datenblatt | |
| 5 | 1,00 | EN 60228; cl. 5 | 6,60 | 48,00 | 76,00 | 6BD10053W | Datenblatt | |
| 7 | 1,00 | EN 60228; cl. 5 | 7,10 | 67,20 | 107,00 | 6BD10073W | Datenblatt | |
| 2 | 1,50 | EN 60228; cl. 5 | 5,90 | 28,80 | 63,00 | 6BD15023W | Datenblatt | |
| 3 | 1,50 | EN 60228; cl. 5 | 6,20 | 43,20 | 75,00 | 6BD15033W | Datenblatt | |
| 5 | 1,50 | EN 60228; cl. 5 | 7,50 | 72,00 | 116,00 | 6BD15053W | Datenblatt | |
| 7 | 1,50 | EN 60228; cl. 5 | 8,20 | 100,80 | 148,00 | 6BD15073W | Datenblatt | |
| 2 | 0,50 | EN 60228; cl. 5 | 5,50 | 9,60 | 42,00 | 6BD50023W | Datenblatt | |
| 3 | 0,50 | EN 60228; cl. 5 | 5,50 | 14,40 | 46,00 | 6BD50033W | Datenblatt | |
| 5 | 0,50 | EN 60228; cl. 5 | 5,50 | 24,00 | 53,00 | 6BD50053W | Datenblatt | |
| 7 | 0,50 | EN 60228; cl. 5 | 5,80 | 33,60 | 70,00 | 6BD50073W | Datenblatt | |
| 2 | 0,75 | EN 60228; cl. 5 | 5,20 | 14,40 | 38,00 | 6BD75023W | Datenblatt | |
| 3 | 0,75 | EN 60228; cl. 5 | 5,20 | 21,60 | 54,00 | 6BD75033W | Datenblatt | |
| 5 | 0,75 | EN 60228; cl. 5 | 6,10 | 36,00 | 65,00 | 6BD75053W | Datenblatt | |
| 7 | 0,75 | EN 60228; cl. 5 | 6,60 | 50,40 | 84,00 | 6BD75073W | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
UK Conformity Assessment
