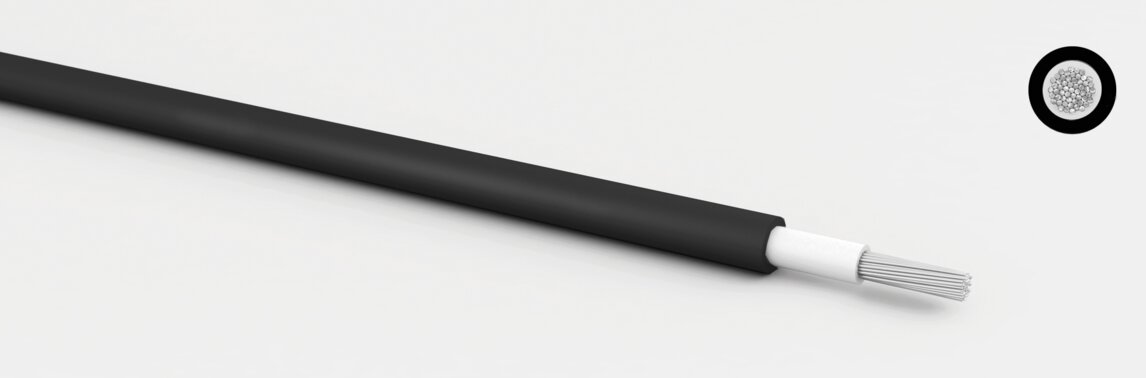

BETAtrans 4GKW-ENX 1,8/3 kV
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
PO copolymer crosslinked
Outer sheath:
PO copolymer crosslinked
technical data
Temperature range static:
-60 to 120 °C
Temperature range moved:
-40 to 90 °C
static bending radius:
5,0 x outer diameter
Bending radius dynamic:
8,0 x outer diameter
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 1800 | 3000 | 6500 |
- low smoke density EN 61034
- no corrosive gases: IEC60754-2; EN50267-2
- halogen free: IEC 60754-1; EN 50267-2-1
- flame retardand: IEC/EN 60332-1-2
- low fire load DIN51900
- oil resistant acc to EN60811 part 404
- resistance to fuel: EN60811
- toxic gases: acc EN 50305
Select visible columns
informationCross sectional area m²StrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| Cross sectional area m² | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|---|
| 1,50 | EN 60228; cl. 5 | 5,45 | 14,40 | 23,00 | 1CM150S02 | |||
| 2,50 | EN 60228; cl. 5 | 5,95 | 24,00 | 34,00 | 1CM250S02 | Datenblatt | ||
| 4,00 | EN 60228; cl. 5 | 6,55 | 38,00 | 53,00 | 1CM400S02 | |||
| 25,00 | EN 60228; cl. 5 | 6,20 | 10,20 | 240,00 | 283,00 | 1CM251S02 | ||
| 35,00 | EN 60228; cl. 5 | 7,70 | 11,70 | 340,00 | 390,00 | 1CM351S02 | Datenblatt | |
| 50,00 | EN 60228; cl. 5 | 9,70 | 13,70 | 480,00 | 544,00 | 1CM501S02 | Datenblatt | |
| 70,00 | EN 60228; cl. 5 | 11,20 | 15,20 | 672,00 | 732,00 | 1CM701S02 | Datenblatt | |
| 95,00 | EN 60228; cl. 5 | 12,80 | 17,20 | 950,00 | 960,00 | 1CM951S02 | Datenblatt | |
| 120,00 | EN 60228; class 5 | 14,60 | 19,00 | 1150,00 | 1190,00 | 1CM121S02 | ||
| 150,00 | EN 60228; cl.5 | 16,40 | 20,80 | 1442,00 | 1474,00 | 1CM151S02 | ||
| 185,00 | EN 60228; class 5 | 17,90 | 22,70 | 1780,00 | 1CM185S02 | |||
| 240,00 | EN 60228; cl.5 | 20,70 | 25,50 | 2350,00 | 1CM242S02 | |||
| 300,00 | EN 60228 cl.5 | 23,30 | 28,10 | 2880,00 | 1CM302S02 | |||
| 400,00 | EN 60228 cl.5 | 26,30 | 31,50 | 3840,00 | 3696,00 | 1CM401S02 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
